Custom Dupont 2.54mm Wiring Harness, 2.54mm Pitch Dupont Wire Harness
  • Custom Dupont 2.54mm Wiring Harness, 2.54mm Pitch Dupont Wire Harness
Custom Dupont 2.54mm Wiring Harness, 2.54mm Pitch Dupont Wire Harness

Custom Dupont 2.54mm Wiring Harness, 2.54mm Pitch Dupont Wire Harness

Part Number:
PHR-4-TO-2-2.54MM-DP-WIRE-HARNESS
Keywords:
Dupont 2.54mm Wiring Harness, 2.54mm Pitch Dupont Wire Harness, 2.54mm Pitch Wiring Harness
Description:
FLECONN can custom dupont 2.54mm pitch single row connector wire harness for led light and other electrical devices.
General Description:
P1: Pitch: 2.0mm PHR-4. P2: 2xPitch 2.54mm Dupong Connector. Current rating: 2A (24AWG), Voltage rating, 100V, Wire Stype: UL1007

Product Description

Custom Dupont 2.54mm Wiring Harness, 2.54mm Pitch Dupont Wire Harness

Product Description:

FLECONN can custom dupont 2.54mm pitch single row connector wire harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.


I. Housing Series

2.0mm Pitch JST PH series to Dupont 2.54mm pitch wire to board connector housing

1.1  2.0mm Pitch JST PH series wire to board connector housing

CircuitsHousing
4PHR-4

1.2  2.54mm Pitch Dupont wire-to-board female connector housing


CircuitsHousing
2A2541H-2P

II. Crimp Terminal

JST PH Crimp Terminal: SPH-002T-P0.5S

Dupont Crimp Terminal: A2541-TB / A2541-TP

Applicable Wire: 26AWG - 24AWG

Insulation OD: 1.2mm - 1.4mm


III. Product Specifications

   1. Electrical Performance:
   Rating voltage: 100V AC DC
   Rating Current: 2.0A (24AWG)
   Applicable Wire: UL1007 AWG #26 to #24AWG

   2. Temperature
   operating temperature, fixed installation: -25 to 80c deg.
   Service: Wiring Harness OEM
   Certificate: CE, RoHS

IV. Product Pictures

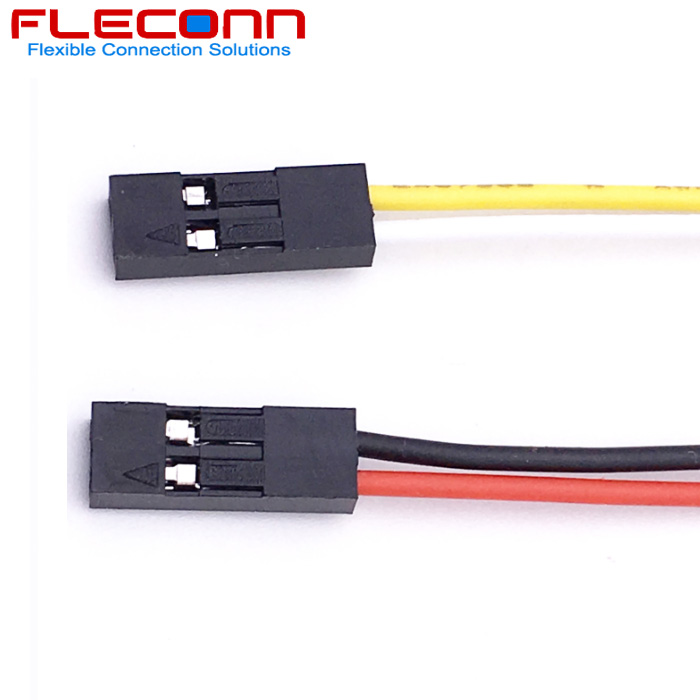

Custom Dupont 2.54mm Connector Wiring Harness, 2.54mm Pitch Dupont Wire Harness

Custom Dupont 2.54mm Connector Wiring Harness, 2.54mm Pitch Dupont Wire Harness.jpg

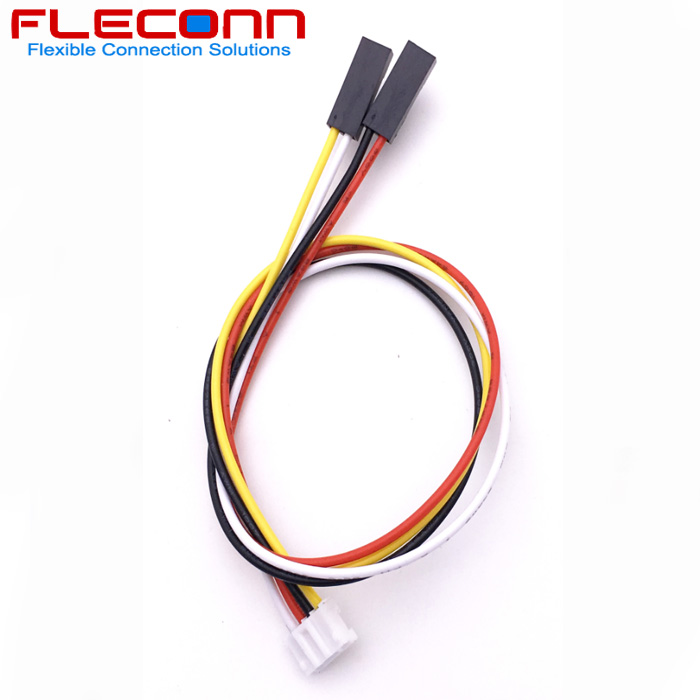

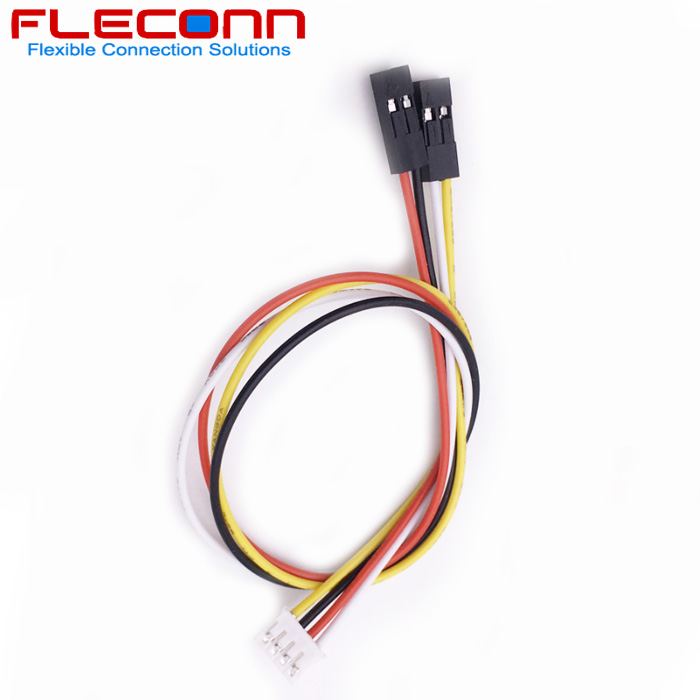

PH 2.0mm PHR-4 4 Pin Connector to Two 2 Pin 2.54mm Pitch Dupont Wire Harness

PH 2.0mm PHR-4 4 Pin Connector to Two 2 Pin 2.54mm Pitch Dupont Wire Harness.jpg

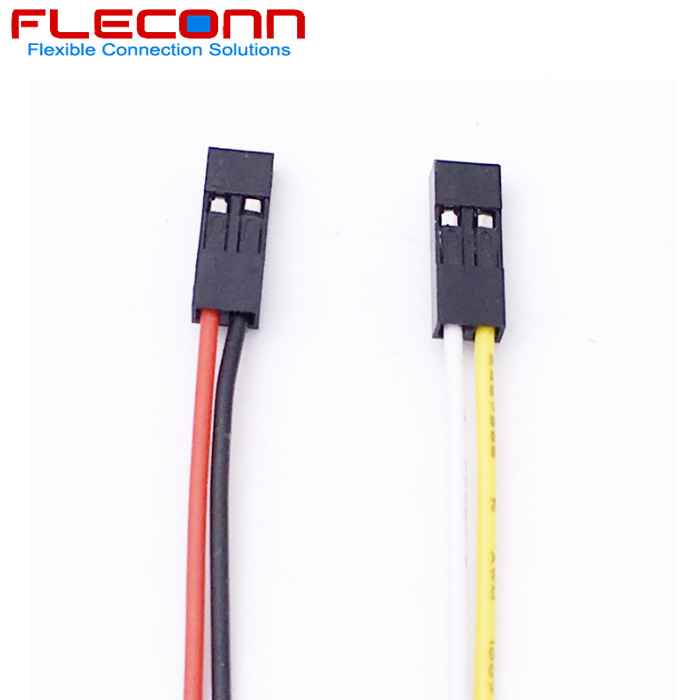

2.54mm Pitch 2 Pin Dupont Connector Wire Harness

2.54mm Pitch 2 Pin Dupont Connector Wire Harness.jpg

2.54mm Pitch 2Pin Connector Wire Harness for LED Light

2.54mm Pitch 2Pin Connector Wire Harness for LED Light.jpg

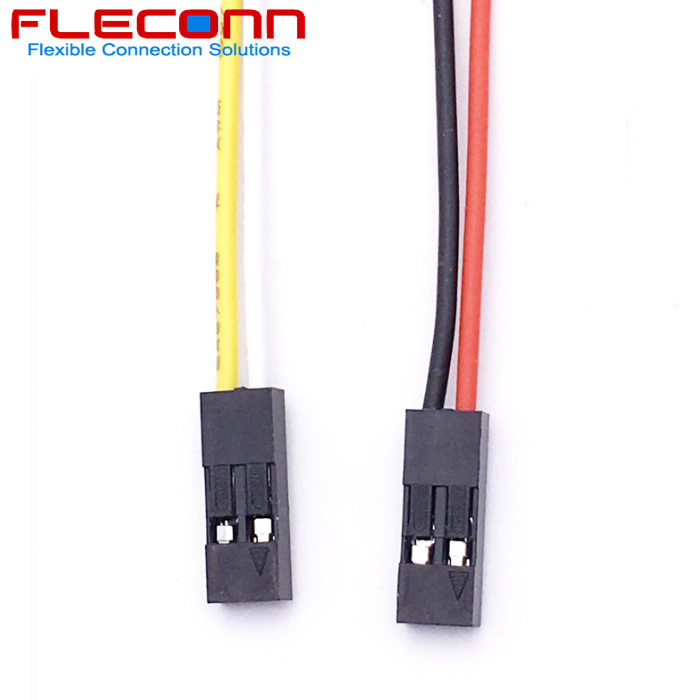

2 Pin Dupont 2.54mm Pitch Single Row Connector Wire Harness

2 Pin Dupont 2.54mm Pitch Single Row Connector Wire Harness.jpg

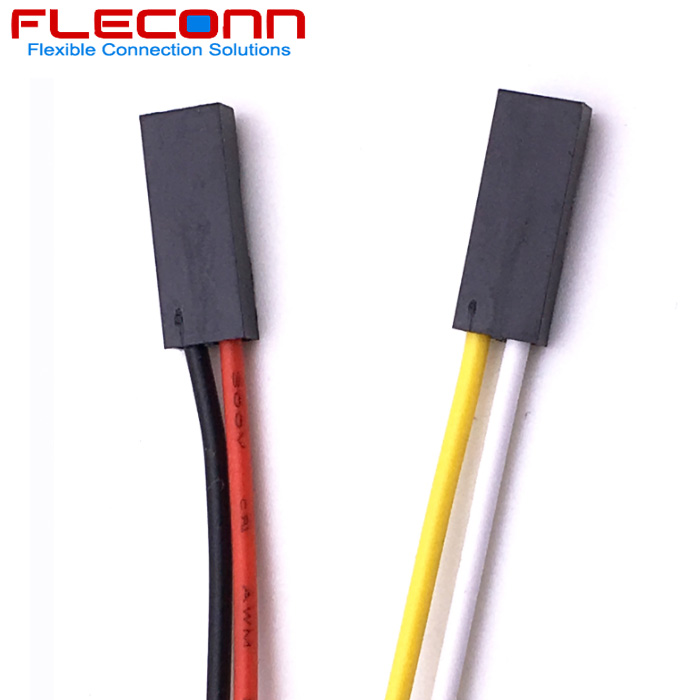

2 pin dupont female connector LED Wire Harness

2 pin dupont female connector LED Wire Harness.jpg
