Molex SL 70107-0002 3 Pin 2.54mm Pitch Wire-to-Wire Connector Cable Assemblies
  • Molex SL 70107-0002 3 Pin 2.54mm Pitch Wire-to-Wire Connector Cable Assemblies
Molex SL 70107-0002 3 Pin 2.54mm Pitch Wire-to-Wire Connector Cable Assemblies

Molex SL 70107-0002 3 Pin 2.54mm Pitch Wire-to-Wire Connector Cable Assemblies

Part Number:
70107-0002, 701-07-0002, 70107-0001, 70107-0003
Keywords:
Molex 70107 Series Wire Harness, SL Wire-to-Wire Connector Cable Harness, 2.54mm Pitch Single Row Connector Wiring Harness
Description:
FLECONN can custom molex sl 70107-0002 3 pin 2.54mm pitch wire-to-wire connector cable assemblies.
General Description:
Connector Series: 70107; Circuit Number: 2 3 4 5 6 7 8 9 10 11 12 circuits; Wire Gauge: UL2464 22AWG 3 core; Gender: Male; Product Name: 2.54mm pitch SL wire-to-wire connector wire harness assembly

Product Description



Molex SL 70107-0002 3 Pin 2.54mm Pitch Wire-to-Wire Connector Cable Assemblies

Product Description:

 FLECONN can custom molex sl 70107-0002 2 3 4 5 6 7 8 9 10 11 12 pin 2.54mm pitch wire-to-wire connector cable assemblies. The Connector housing is male, single row, version A, without mounting ears, 3 circuits, black.

Molex SL Modular Connector Wire Harness

With its large number of options and configurations, SL Modular Connectors and Assemblies deliver ideal wire-to-wire solutions and its varying PCB termination methods, including reflow process capable versions, support a range of wire-to-board applications.


I. Housing Series

1.1  Molex 70400 Series  SL 2.54mm pitch wire-to-wire connector housing

CircuitsHousingEDP. NO.
270107-0001701-07-0001
370107-0002701-07-0002
470107-0003701-07-0003
570107-0004701-07-0004
670107-0005701-07-0005
770107-0006701-07-0006
870107-0007701-07-0007
970107-0008701-07-0008
1070107-0009701-07-0009
1270107-00011701-07-00011

II. Crimp Terminal

SL Crimp Terminal, Series 70021

Part NumberTittlePlated MaterialApplied Wire Size range
16-02-0107 SL Crimp Terminal, Series 70021, Male, Reel PackingTin (Sn) Plated Contact22-24 AWG

16-02-0081
SL Crimp Terminal, Series 70021, Male, Reel0.38µm Selective Gold (Au) Plated Contact22-24 AWG
16-02-0105SL Crimp Terminal, Series 70021, Male, Reel Packing
Tin (Sn) Plated Contact24-30 AWG
16-02-0077SL Crimp Terminal, Series 70021, Male, Reel Packing0.38µm Selective Gold (Au) Plated Contact24-30 AWG


III. Product Specifications

   1. Electrical Performance:
   Rating voltage: 300V AC
   Rating Current: 3A (22AWG)

   2. Temperature
   operating temperature, fixed installation: -40°C to +105°C

   Service: Wiring Harness OEM
   Certificate: CE, RoHS

IV. Product Pictures

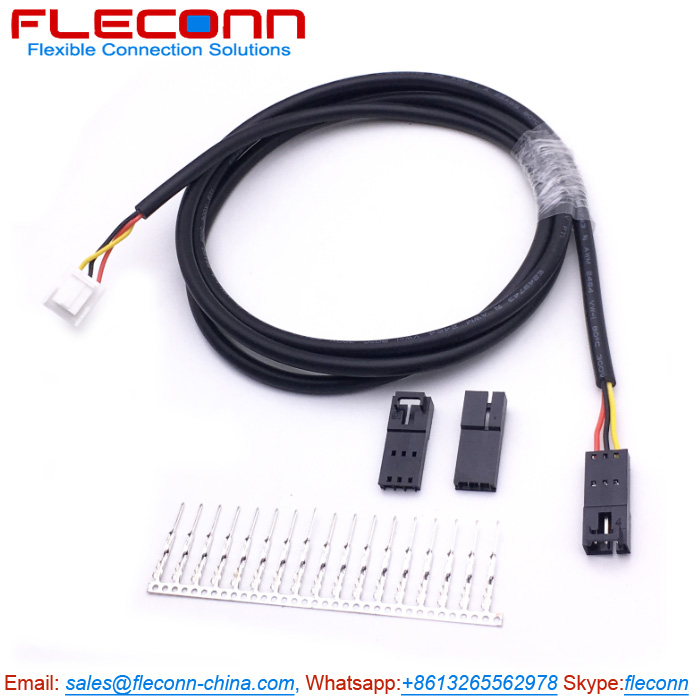

Molex 2.54mm Pitch 70107 Series SL 2 3 4 5 6 7 8 9 10 12 Pole Way Circuits Connector Wire Harness

Molex 2.54mm Pitch 70107 Series SL 2 3 4 5 6 7 8 9 10 12 Pole Way Circuits Connector Wire Harness.jpg

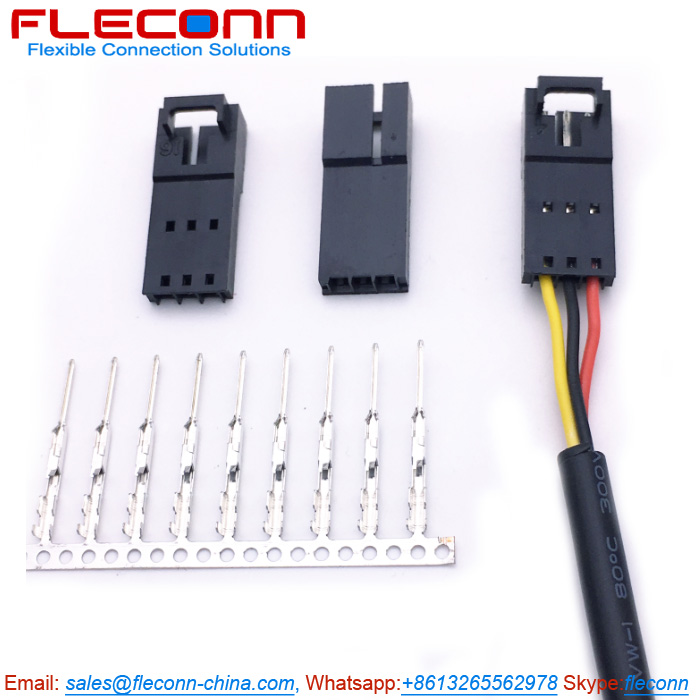

Molex 70107 Series SL 2 3 4 5 6 7 8 9 10 12 Pin Connector Cable Assemblies

Molex 70107 Series SL 2 3 4 5 6 7 8 9 10 12 Pin Connector Cable Assemblies.jpg

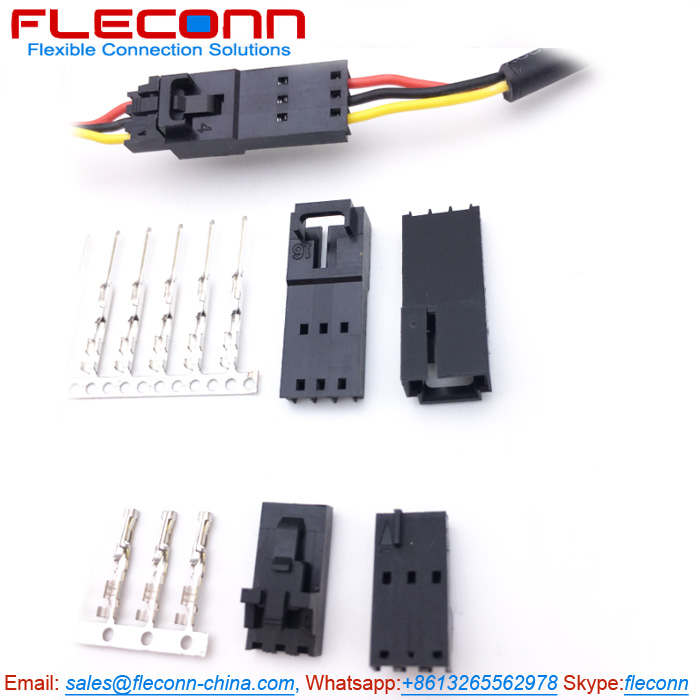

Molex 70107-0002 3 Pin SL Wire-to-Wire Connector Cable Harness Assemblies

Molex 70107-0002 3 Pin SL Wire-to-Wire Connector Cable Harness Assemblies.jpg

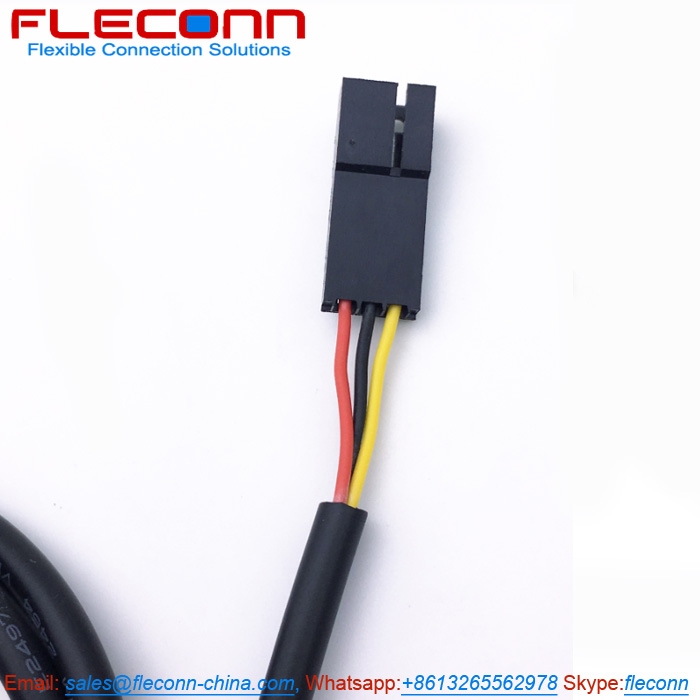

Molex 2.54mm Pitch SL Wire-to-Wire Connector Cable Harness, Single Row, Version A,  3 Circuits, Black

Molex 2.54mm Pitch SL Wire-to-Wire Connector Cable Harness, Single Row, Version A,  3 Circuits, Black.jpg

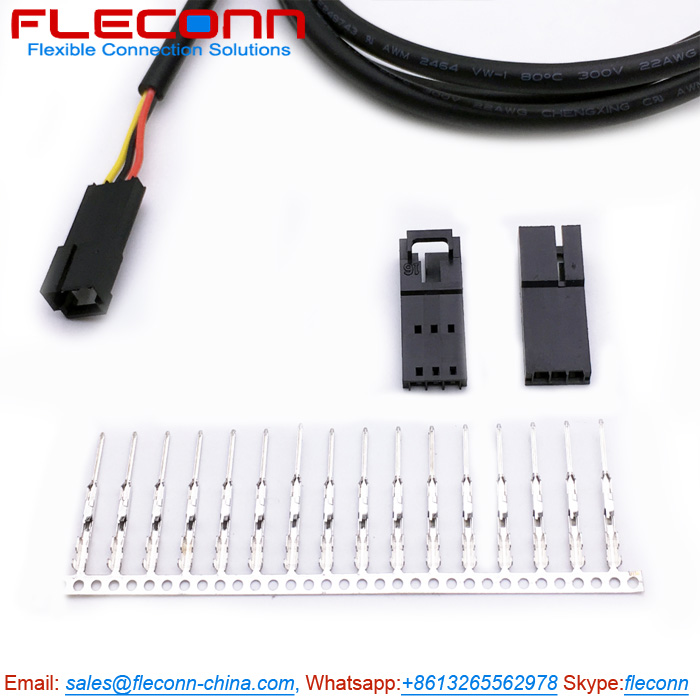

Molex 701-07-0002 SL 3 Pin Male Connector Wire Harness

Molex 701-07-0002 SL 3 Pin Male Connector Wire Harness.jpg

Custom Molex 70107 Series SL Connector Wiring Harness with 2 3 4 5 6 7 8 9 10 12 Circuits

Custom Molex 70107 Series SL Connector Wiring Harness with 2 3 4 5 6 7 8 9 10 12 Circuits.jpg
