1.0mm Pitch JST NSH NSHR-04V-S 4P 4 Pin Connector Wiring Harness
  • 1.0mm Pitch JST NSH NSHR-04V-S 4P 4 Pin Connector Wiring Harness
1.0mm Pitch JST NSH NSHR-04V-S 4P 4 Pin Connector Wiring Harness

1.0mm Pitch JST NSH NSHR-04V-S 4P 4 Pin Connector Wiring Harness

Part Number:
NSHR-02V-S, NSHR-03V-S, NSHR-04V-S
Keywords:
1.0mm Pitch Connector Wire harness, JST NSH Series Wire Harness, 4 Pin Connector Wire Harness
Description:
FLECONN can custom jst 1.0mm pitch 4 Pin wire harness with NSH series NSHR-04V-S wire to board crimp style connectors.
General Description:
Pitch: 1.0mm, Current rating: 1A, Voltage rating, 50V, Applicable Wire: Conductor size /AWG #32 to #28AWG, Insulation O.D. 0.4 to 0.8mm

Product Description


1.0mm Pitch JST NSH NSHR-04V-S 4P 4 Pin Connector Wiring Harness

Product Description:

FLECONN can custom JST NSH series pitch 1.0mm 2 pin NSHR-02V-S, 3 pin NSHR-03V-S, 4 pin NSHR-04V-S, 5 pin NSHR-05V-S, 6 pin NSHR-06V-S, 7 pin NSHR-74V-S, 8 pin NSHR-08V-S, 9 pin NSHR-09V-S, 10 pin NSHR-10V-S, 11 pin NSHR-11V-S, 12 pin NSHR-12V-S, 13 pin NSHR-13V-S, 14 pin NSHR-14V-S, 15 pin NSHR-15V-S connector wiring harness for global customers. The part number of the connector housing is NSHR-04V-S, terminal is SSHL-003T-P0.2.

Product Specifications

   1. Electrical Performance:
   Rating voltage: 50V AC DC
   Rating Current: 0.5 - 1.0A
   Applicable Wire: Conductor size /AWG #32 to #28AWG, Insulation O.D. 0.4 to 0.8mm, UL1571, UL1061 style

   2. Temperature
   operating temperature, fixed installation: -25 to 80c deg.
   Service: Wiring Harness OEM
   Certificate: CE, RoHS

Product Pictures

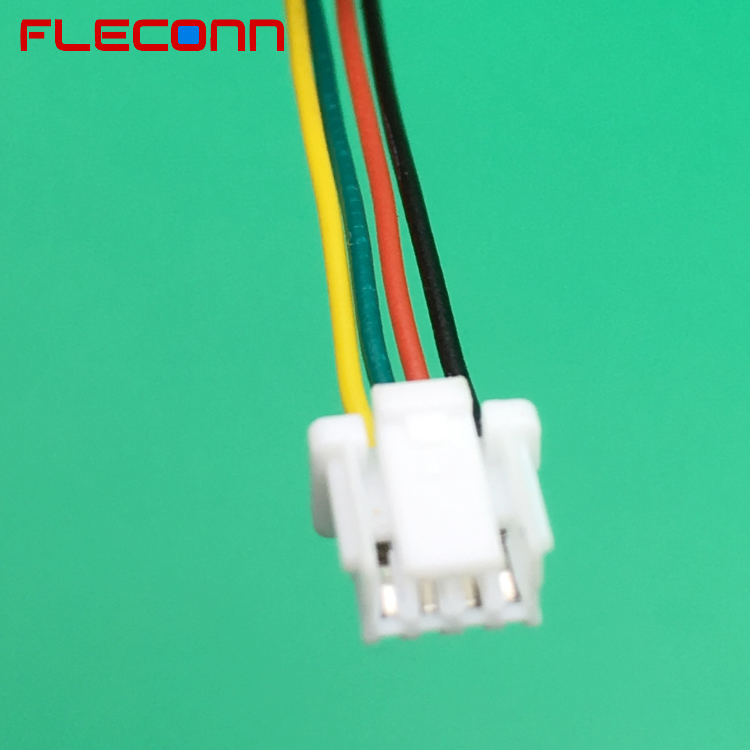

JST NSH 4 Pin Connector Wiring Harness

JST NSH 4 Pin Connector Wiring Harness.jpg

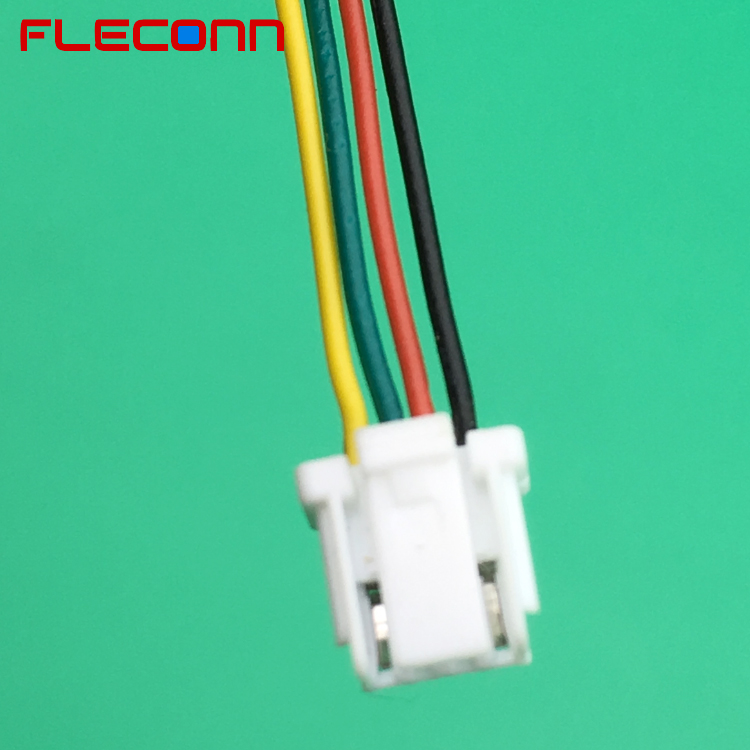

JST 4P 1.0 mm Pitch Connector Wiring Harness

JST 4P 1.0 mm Pitch Connector Wiring Harness.jpg

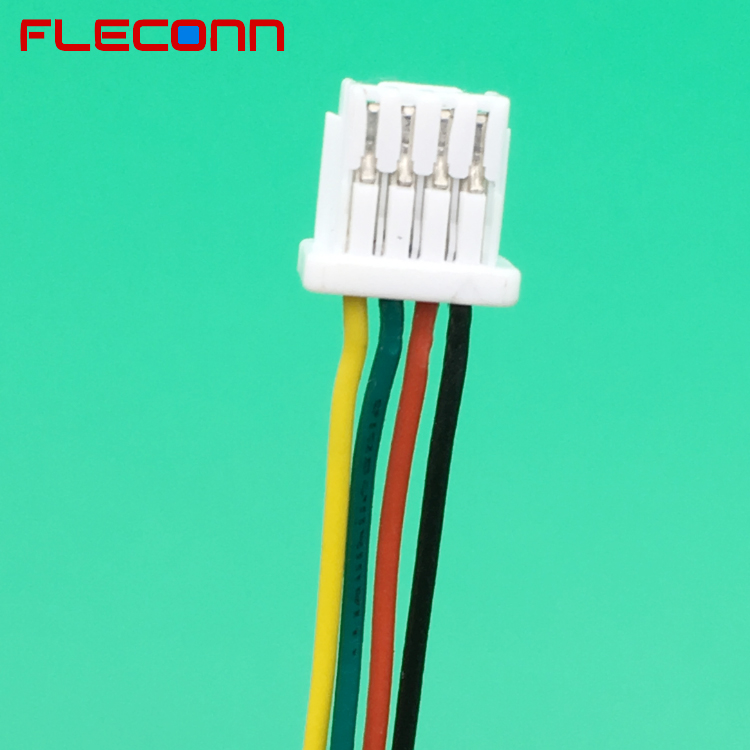

JST 4 Pin Wiring Harness

JST 4 Pin Wiring Harness.jpg

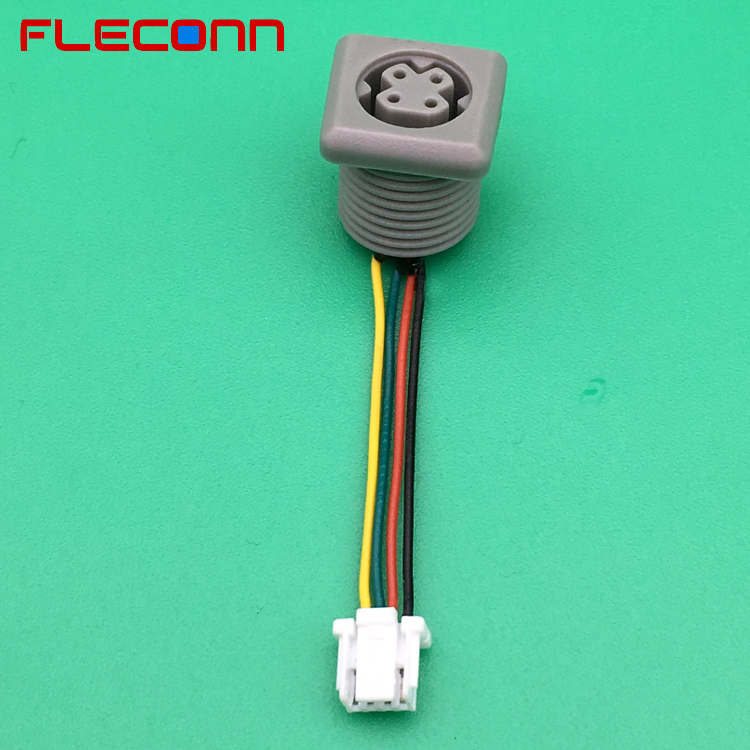

JST 4 Circuit Connector Wiring Harness

JST 4 Circuit Connector Wiring Harness.jpg

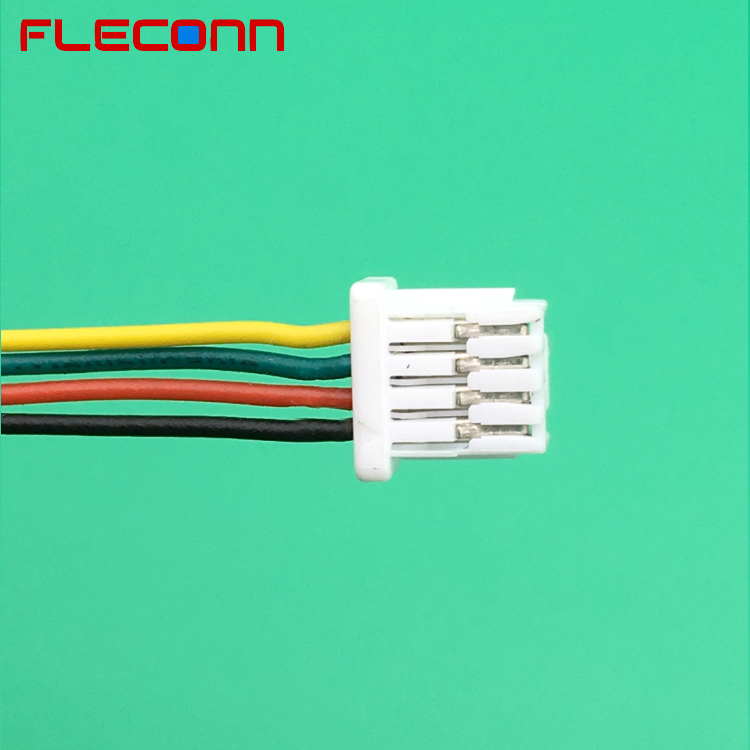

1.0mm Pitch JST Wiring Harness

1.0mm Pitch JST Wiring Harness.jpg

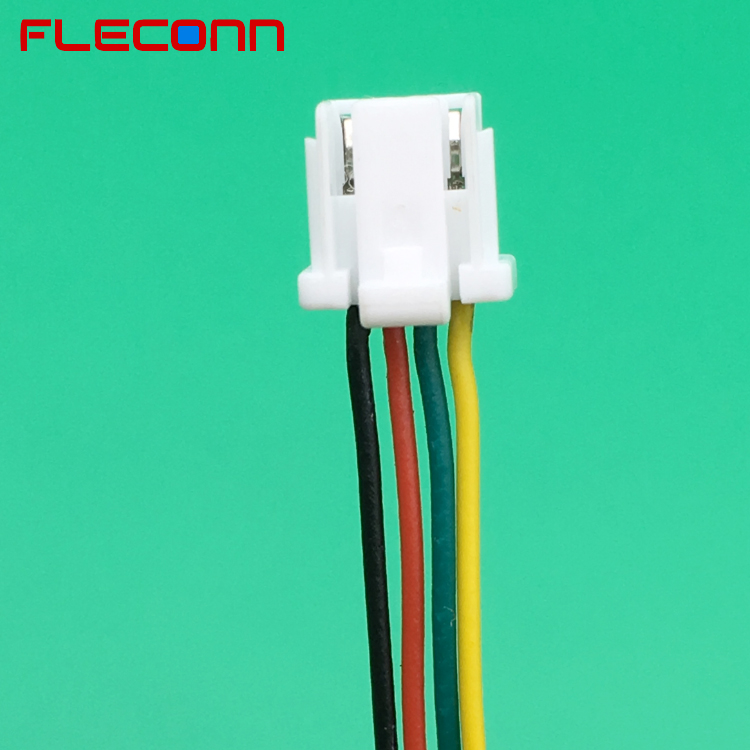

JST NSHR-04V-S Connector Wiring Harness

JST NSHR-04V-S Connector Wiring Harness.jpg
