1.25mm Pitch GHR-04V-S 4 Pin JST GH Connector Wire Harness
  • 1.25mm Pitch GHR-04V-S 4 Pin JST GH Connector Wire Harness
1.25mm Pitch GHR-04V-S 4 Pin JST GH Connector Wire Harness

1.25mm Pitch GHR-04V-S 4 Pin JST GH Connector Wire Harness

Part Number:
GHR-02V-S, GHR-03V-S, GHR-04V-S, GHR-05V-S
Keywords:
JST GH Connector Wire Harness, 1.25mm Pitch Connector Wire Harness, 1.25 mm Pitch 4 Pin GH Series Wire Harness
Description:
FLECONN Can custom 1.25mm Pitch 2 3 4 5 6 Pin JST GH Series Connector Wire Harness.
General Description:
Pitch: 1.25mm, Current rating: 1 A, Voltage rating, 50V, Applicable Wire: Conductor size /AWG #30 to #26AWG, Insulation O.D. 0.76mm to 1.0mm, Wire Stype: UL1571, UL1061

Product Description

1.25mm Pitch GHR-04V-S 4 Pin JST GH Connector Wire Harness

Product Description:

FLECONN can custom 2 pin 3 pole 4 pin 5 pos 6  circuits JST GH series connector wire harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.


I. JSTHousing Series

1.25mm Pitch JST GH series wire to board connector housing

Circuits

Housing

2GHR-02V-S
3GHR-03V-S
4GHR-04V-S
5GHR-05V-S
6GHR-06V-S
7GHR-07V-S
8GHR-08V-S
9GHR-09V-S
10GHR-10V-S
11GHR-11V-S
12GHR-12V-S
13GHR-13V-S
14GHR-14V-S
15GHR-15V-S


II. Crimp Terminal

Crimp Terminal: SSHL-002T-P0.2

Applicable conductor size: 30AWG - 26AWG

Insulation OD: 0.5mm - 0.63mm


III. Product Specifications

   1. Electrical Performance:
   Rating voltage: 50V AC DC
   Rating Current: 0.76 - 1.0A
   Applicable Wire: UL1571, UL1061 AWG #30 to #26AWG

   2. Temperature
   operating temperature, fixed installation: -25 to 80c deg.
   Service: Wiring Harness OEM
   Certificate: CE, RoHS

IV. Product Pictures

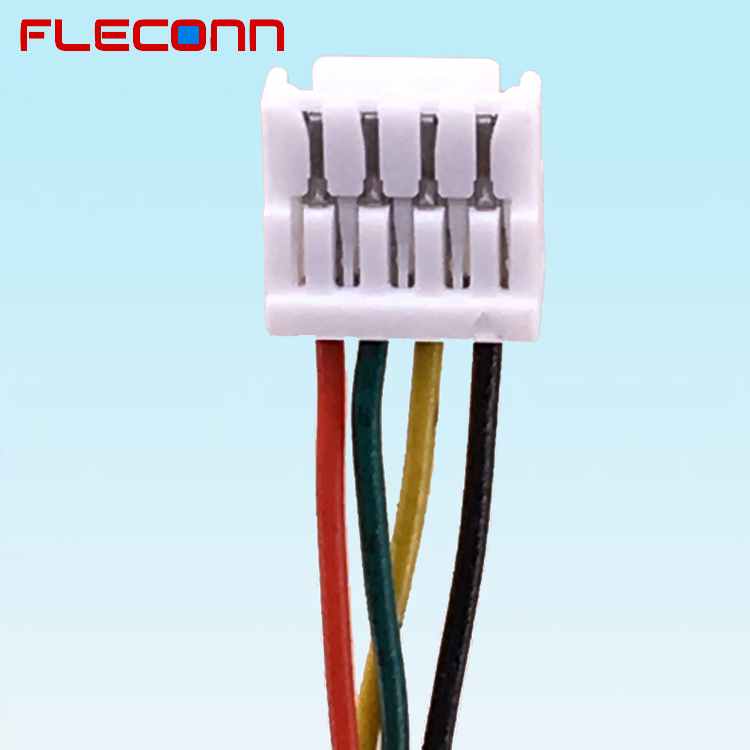

JST 1.25mm Connector Wire Harness

JST 1.25mm Connector Wire Harness.jpg

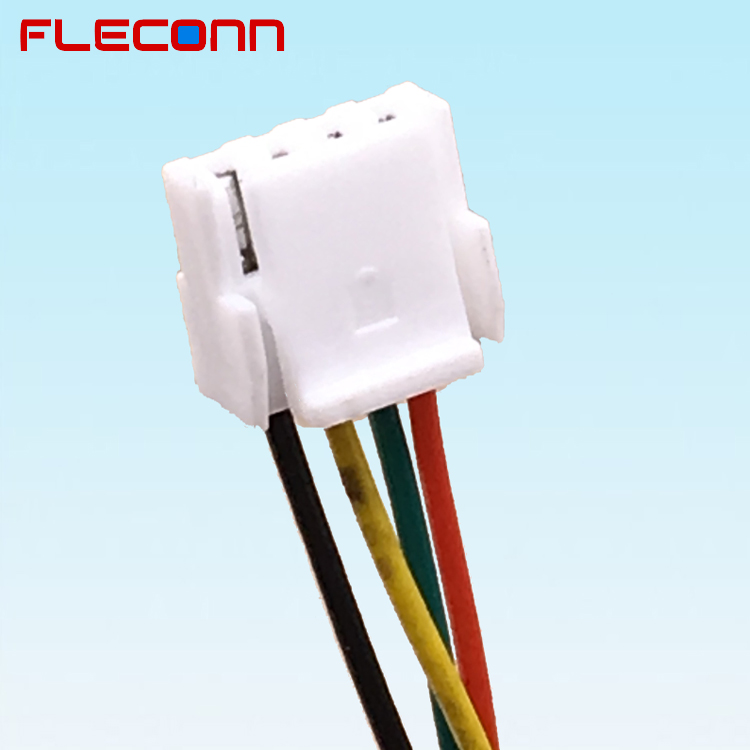

1.25mm Pitch Connector Wire Harness

1.25mm Pitch Connector Wire Harness.jpg

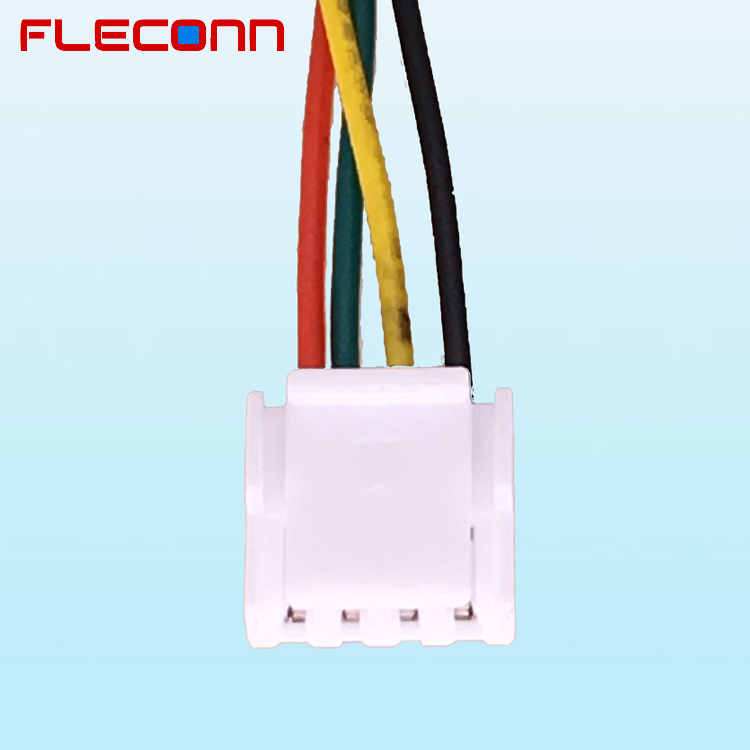

4 Pin JST Connector Wire Harness

4 Pin JST Connector Wire Harness.jpg

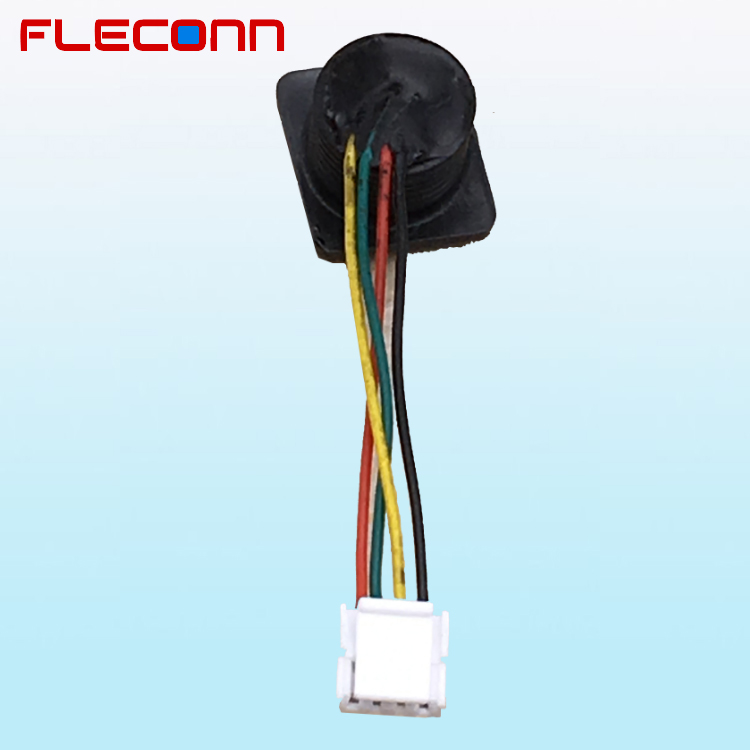

JST GH Series Connector Wire Harness

JST GH Series Connector Wire Harness.jpg

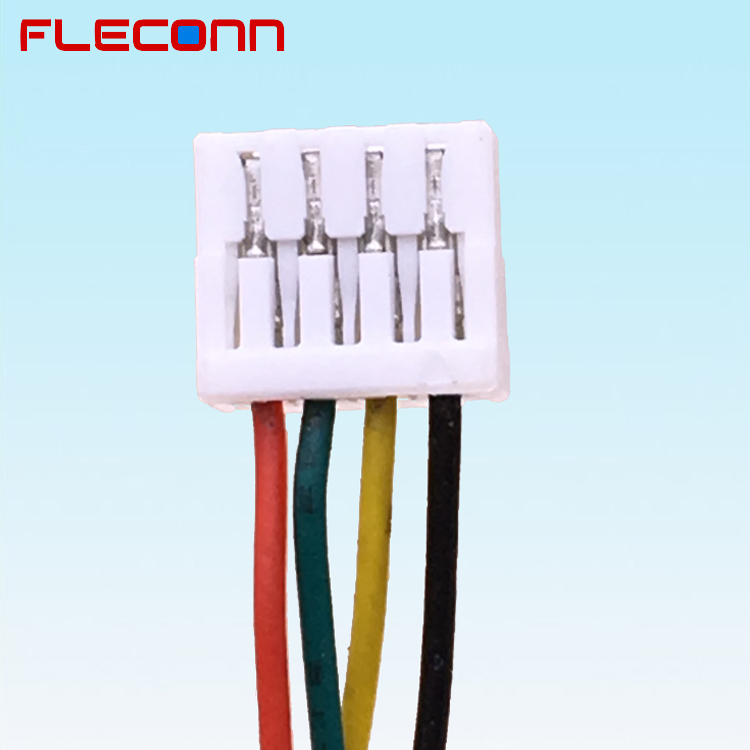

Pitch 1.25 mm JST GH Connector Wire Harness

Pitch 1.25 mm JST GH Connector Wire Harness.jpg

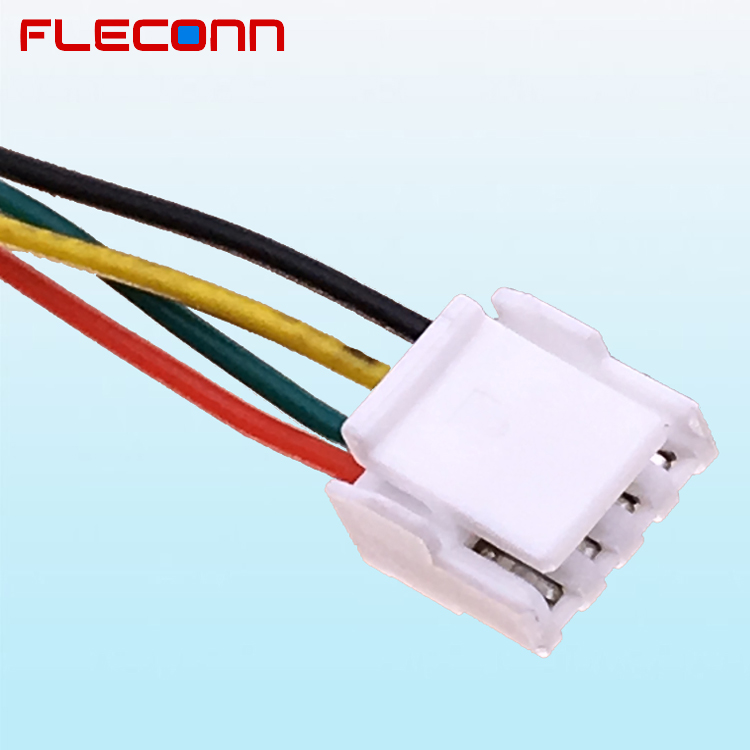

JST 4 PIN GHR-04V-S Wire Harness

JST 4 PIN GHR-04V-S Wire Harness.jpg
