JST XH Series XHP-4 2.5mm Pitch 2 3 4 5 6 7 8 Pin Connector Wire Harness
  • JST XH Series XHP-4 2.5mm Pitch 2 3 4 5 6 7 8 Pin Connector Wire Harness
JST XH Series XHP-4 2.5mm Pitch 2 3 4 5 6 7 8 Pin Connector Wire Harness

JST XH Series XHP-4 2.5mm Pitch 2 3 4 5 6 7 8 Pin Connector Wire Harness

Part Number:
XHP-2, XHP-3, XHP-4, XHP-5, XHP-6, XHP-7, XHP-8
Keywords:
JST XH Series Wire Harness, JST XHP-4 Connector Wire Harness, 2.5mm Pitch XH Wire Harness
Description:
FLECONN can custom JST XH series XHP-4 2.5mm pitch 2 3 4 5 6 7 8 pin way connector wire harness.
General Description:
Pitch: 2.5mm, Current rating: 3A (22AWG), Voltage rating, 250V, Applicable Wire: Conductor size /AWG #30 to #22AWG, Insulation O.D. 0.9mm to 1.9mm, Wire Stype: UL1007, UL1571

Product Description


JST XH Series XHP-4 2.5mm Pitch 2 3 4 5 6 7 8 Pin Connector Wire Harness

Product Description:

FLECONN can custom JST XH series XHP-4 2.5mm pitch 2 3 4 5 6 7 8 pin way connector wire harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.


I. Housing Series

1.1  2.5mm pitch JST XH series wire-to-board housing

CircuitsReceptacle Housing
1XHP-1
2XHP-2
3XHP-3
4XHP-4
5XHP-5
6XHP-6
7XHP-7
8XHP-8
9XHP-9
10XHP-10
11XHP-11
12XHP-12
13XHP-13
14XHP-14
15XHP-15
16
XHP-16
20XHP-20

II. Crimp Terminal

Crimp Terminal: SXH-001T-P0.6N / SXH-001T-P0.6 / SXH-002T-P0.6

Applicable Wire: 36AWG - 22AWG / 28AWG - 22AWG / 30AWG - 26AWG

Insulation OD: 1.3mm - 1.9mm / 0.9mm - 1.9mm / 0.9mm - 1.3mm



III. Product Specifications

   1. Electrical Performance:
   Rating voltage: 250V AC DC
   Rating Current: 3.0A (22AWG)

   2. Temperature
   operating temperature, fixed installation: -25 to 80c deg.
   Service: Wiring Harness OEM
   Certificate: CE, RoHS

IV. Product Pictures

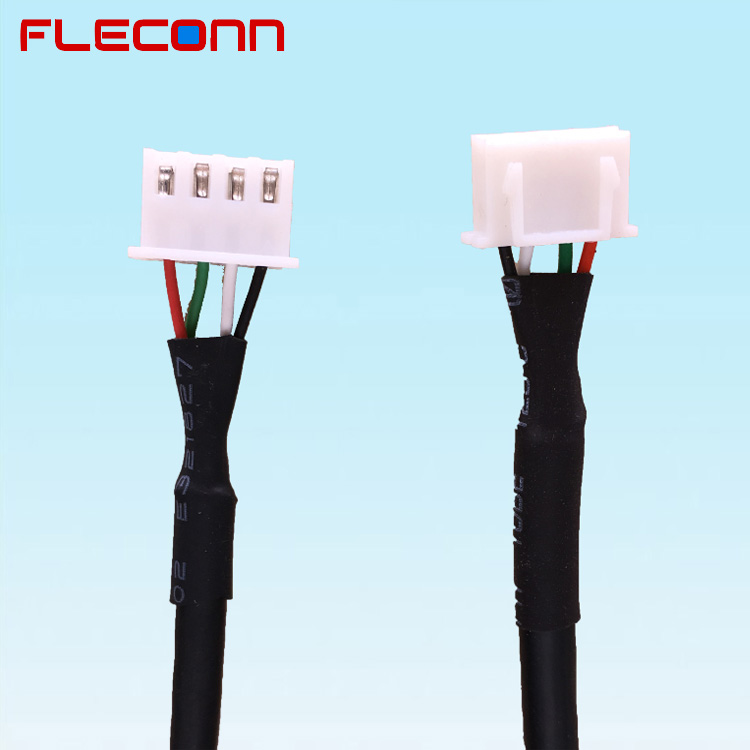

JST 2.5mm Pitch XHP-4 4 Pin Connector Wire Harness

JST 2.5mm Pitch XHP-4 4 Pin Connector Wire Harness.jpg

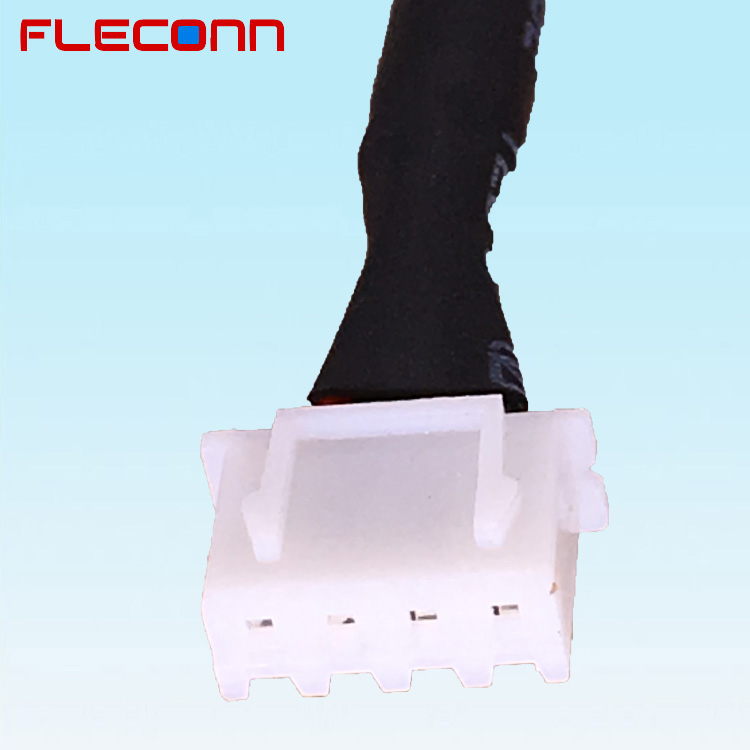

JST XH 4 Way Connector Wire Harness

JST XH 4 Way Connector Wire Harness.jpg

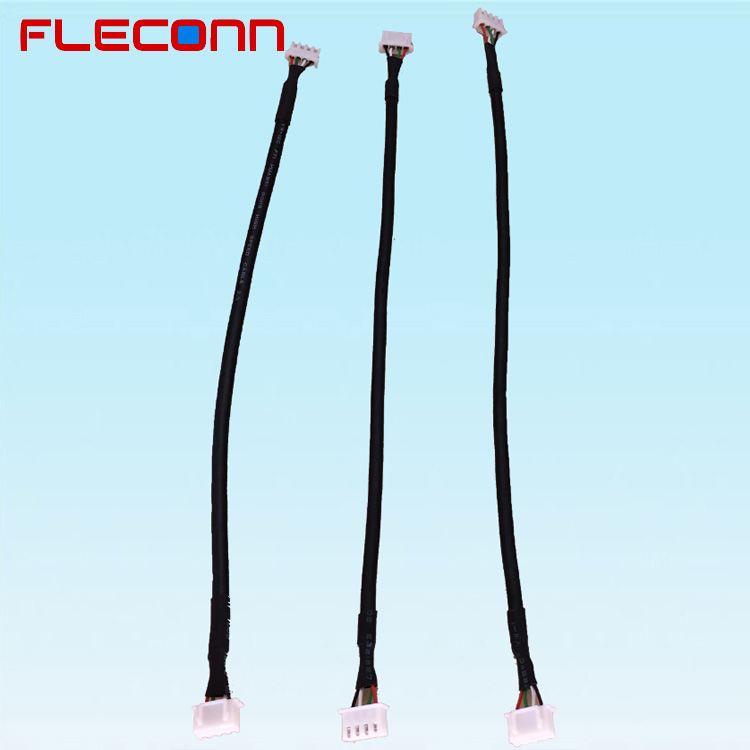

JST 4 Pin Wire Harness

JST 4 Pin Wire Harness.jpg

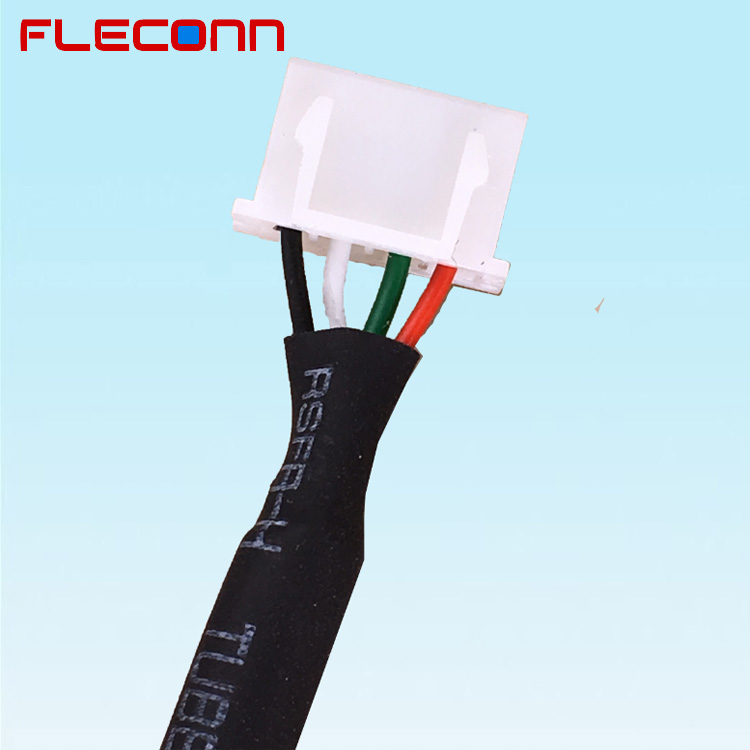

JST XH Series 4Pin Wire Harness

JST XH Series 4Pin Wire Harness.jpg

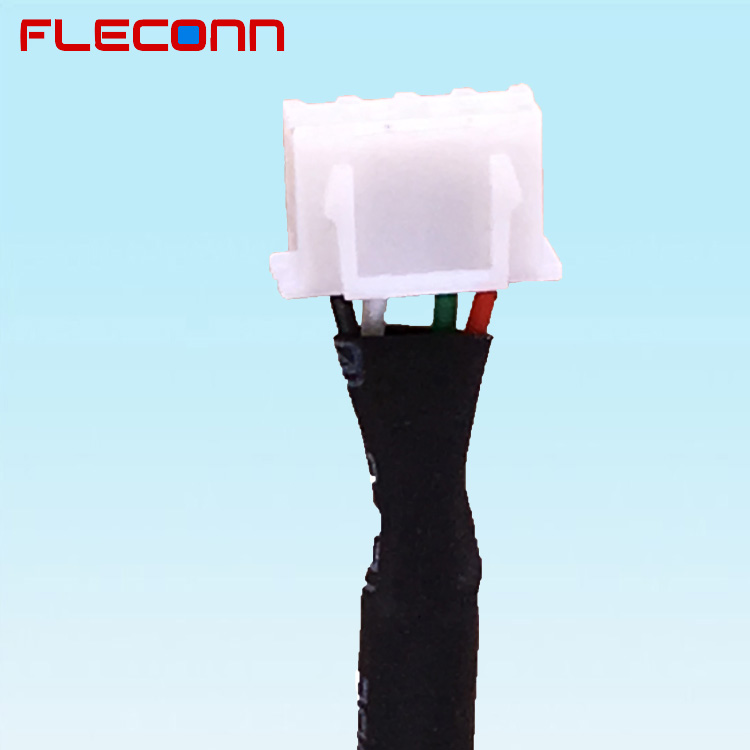

JST XH Series 2 3 4 5 6 7 8 Pin Wire Harness with UL2464 Multi-core cable

JST XH Series 2 3 4 5 6 7 8 Pin Wire Harness with UL2464 Multi-core cable.jpg

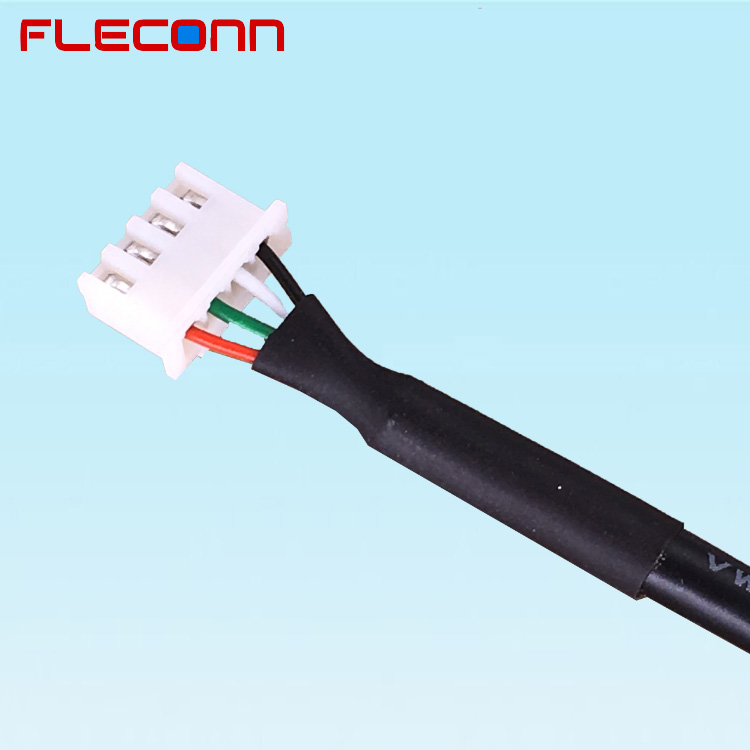

2.5mm Pitch 4 Circuit JST Wire to Board Cable Harness

2.5mm Pitch 4 Circuit JST Wire to Board Cable Harness.jpg
