M12 A Coding Male Panel Mount Connector, 12 Contacts, Rear Mount
  • M12 A Coding Male Panel Mount Connector, 12 Contacts, Rear Mount
M12 A Coding Male Panel Mount Connector, 12 Contacts, Rear Mount

M12 A Coding Male Panel Mount Connector, 12 Contacts, Rear Mount

Part Number:
M12-M-A-P2-12P
Keywords:
M12 A Coding Panel Mount Connector, 12 Contacts M12 Connector, M12 Rear Mount Connector
Description:
FLECONN can supply M12 A Coding male panel mount connector with 12 contacts, Rear Mount
General Description:
Products Type: M12 Rear Panel Mount Connector. Contact Body Type: Male. Coding Type: A Coding. Contacts: 12 Contacts. Installation Method: Rear Mounting.

Product Description


M12 A Coding Male Panel Mount Connector, 12 Contacts, Rear Mount

FLECONN can supply M12 A Coding male rear panel mount connector with 12 contacts for the signal and DC power transmition of industry automation system.

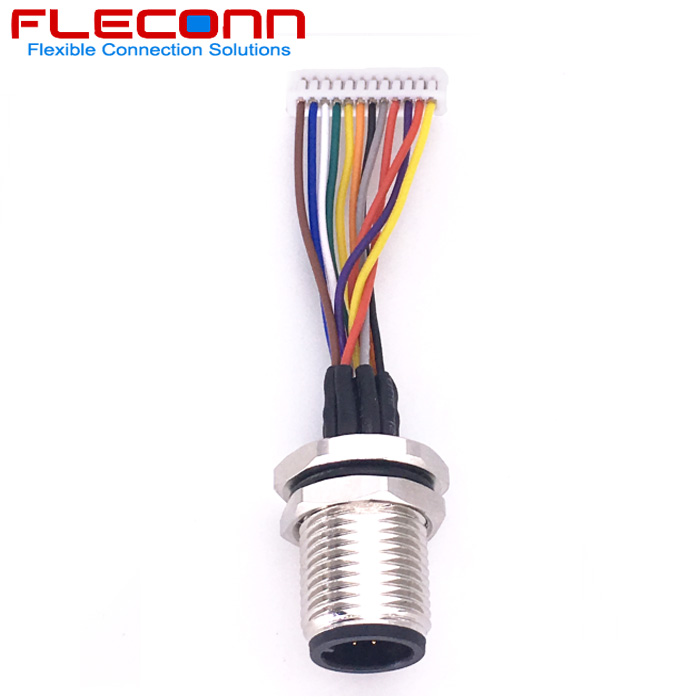

M12 A Coding Male Panel Mount Connector, 12 Contacts, Rear Mount.jpg


Last Product: M12 12Pin A Coded Male Panel Mount Connector with Single Wires

Next Product: M12 4 Pin A Coding Connector, Male Plug, Rear Mounting Thread M12x1


Product Features:

M12 connectors conform to IEC 61076-2-104

Products Type: M12 Rear Panel Mount Connector

Contact Body Type: Male

Coding Type: A Coding

Plug Type: straight type

Wiring Method: Soldering

Contacts: 12 Contacts

Installation Method: Rear Mounting, front fastened by metal nut.

Part Number: M12-M-A-P2-12P


Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ~+85℃


Specification

Number of Contacts  12

Rated Voltage 30V

Rated Current 1.5A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ 0.6±0.03

Wire Gauge 26AWG

Single Wire Insulation Material PVC

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated
