Pitch 2.0mm JST PND Connector Wire Harness, 8 10 12 14 16 18 20 22 Pin
  • Pitch 2.0mm JST PND Connector Wire Harness, 8 10 12 14 16 18 20 22 Pin
Pitch 2.0mm JST PND Connector Wire Harness, 8 10 12 14 16 18 20 22 Pin

Pitch 2.0mm JST PND Connector Wire Harness, 8 10 12 14 16 18 20 22 Pin

Part Number:
PNDP-08V-Z, PNDP-10V-Z, PNDP-12V-Z, PNDP-14V-Z
Keywords:
2.0mm Pitch PND Connector Wire Harness, JST PNDP 8 Pin Wire Harness, PND 10 Pin Connector Harness
Description:
FLECONN can custom Pitch 2.0mm JST PND Connector Wire Harness with 8 10 12 14 16 18 20 22 Pin housing.
General Description:
Pitch: 2.0mm, Current rating: 3A (22AWG), Voltage rating, 250V, Applicable Wire: Conductor size /AWG #28 to #22AWG, Insulation O.D. 0.9mm to 1.5mm, Wire Stype: UL1571, UL1061

Product Description

JST Pitch 2.0mm PND Wire to Wire Connector Harness, 2 3 4 5 6 7 8 pin

Product Description:

FLECONN can custom 8 pin - 42 pin 2.0mm pitch JST PND series connector wire harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.


I. JSTHousing Series

2.0mm Pitch JST PND series wire to board connector housing

CircuitsHousing
8PNDP-08V-Z
10PNDP-10V-Z
12PNDP-12V-Z
14PNDP-14V-Z
16PNDP-16V-Z

18

PNDP-18V-Z
20PNDP-20V-Z
22PNDP-22V-Z
24PNDP-24V-Z
26PNDP-26V-Z
28PNDP-28V-Z
30PNDP-30V-Z
32
PNDP-32V-Z
34PNDP-34V-Z
36PNDP-36V-Z
38PNDP-38V-Z
40PNDP-40V-Z
42PNDP-42V-Z

II. Crimp Terminal

   Crimp Terminal: SPND-001T-C0.5 / SPND-002T-C0.5

   Applicable conductor size: 26AWG - 22AWG / 28AWG - 24AWG

   Insulation OD: 1.0mm - 1.5mm / 0.76mm - 1.5mm


III. Product Specifications

   1. Electrical Performance:
   Rating voltage: 250V AC DC
   Rating Current: 3.0A (22AWG)
   Applicable Wire: UL1571, UL1061 AWG #28 to #22AWG

   2. Temperature
   operating temperature, fixed installation: -25 to 80c deg.
   Service: Wiring Harness OEM
   Certificate: CE, RoHS

IV. Product Pictures

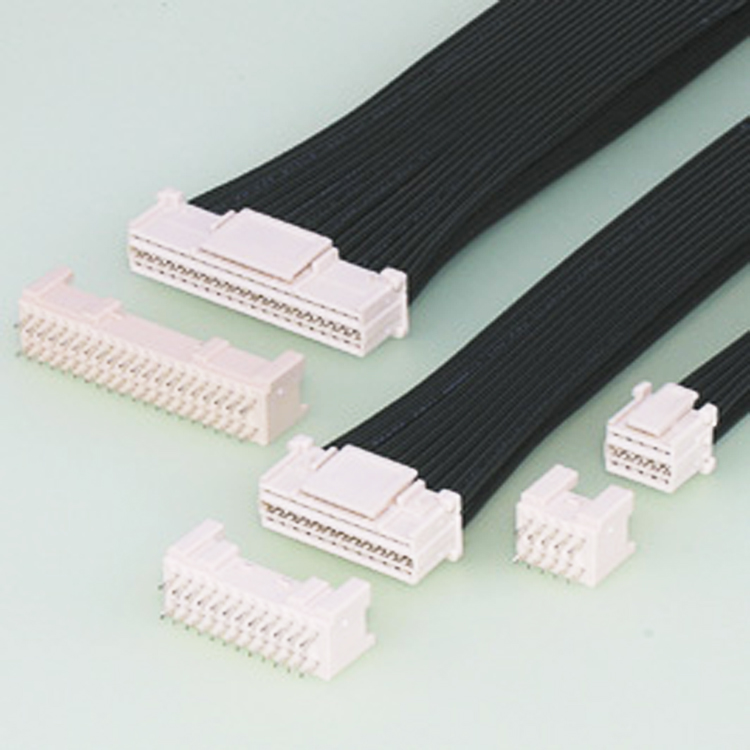

JST 2.0mm Pitch PND Connector Wire Harness
