Product Description:
FLECONN can custom 2 pin - 8pin 2.0mm pitch JST PAL series connector wire harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.
I. JSTHousing Series

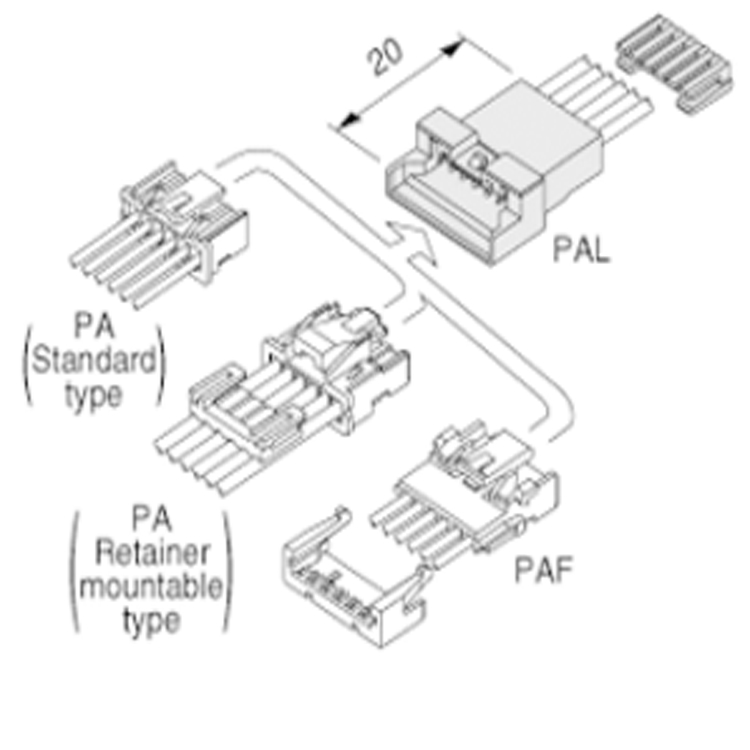

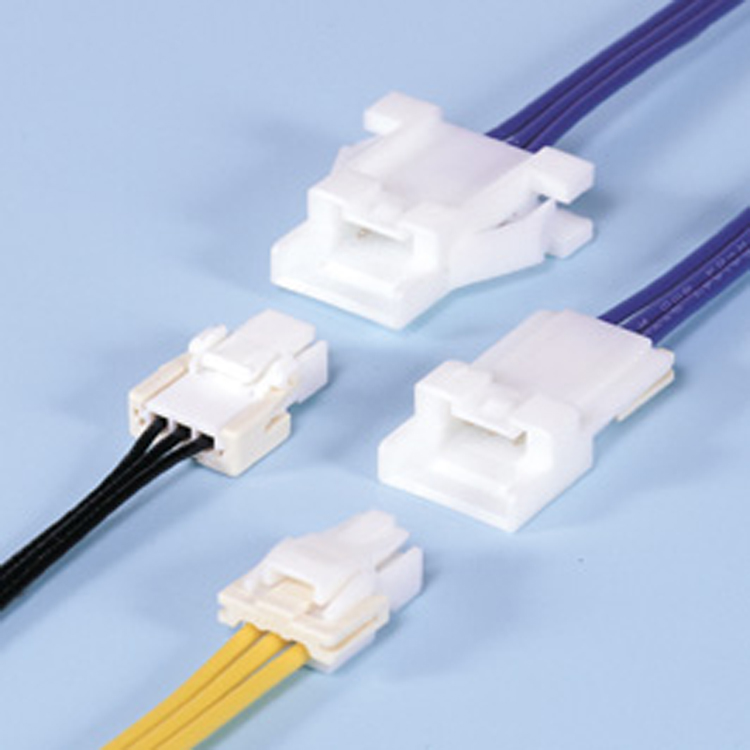

2.0mm Pitch JST PAL series wire to wire connector housing
Circuits | Housing (Without Panel Locks) | Housing (With Panel Locks) |
2 | PALR-02VF | PALR-02V |
3 | PALR-03VF | PALR-03V |
4 | PALR-04VF | PALR-04V |
5 | PALR-05VF | PALR-05V |
6 | PALR-06VF | PALR-06V |
7 | PALR-07VF | PALR-07V |
8 | PALR-08VF | PALR-08V |
II. Crimp Terminal
Crimp Terminal: SPAL-001T-P0.5 / SPAL-002T-P0.5
Applicable conductor size: 26AWG - 22AWG / 28AWG - 24AWG
Insulation OD: 1.0mm - 1.5mm / 0.9mm - 1.5mm
III. Product Specifications
1. Electrical Performance:
Rating voltage: 100V AC DC
Rating Current: 3.0A (22AWG)
Applicable Wire: UL1571, UL1061 AWG #28 to #22AWG
2. Temperature
operating temperature, fixed installation: -25 to 80c deg.
Service: Wiring Harness OEM
Certificate: CE, RoHS
