JST 2.0mm Pitch JWPF Wire-to-Wire Waterproof Connector Harness Assembly

Send Inquiry Now

JST 2.0mm Pitch JWPF Wire-to-Wire Waterproof Connector Harness Assembly

JST 2.0mm Pitch JWPF Wire-to-Wire Waterproof Connector Harness Assembly

Product Category:

Products > Custom Cable Assembly >Wire Harness Manufacturer >2.0mm Pitch Connector Wire Harness

Part Number:
02T-JWPF-VSLE-S, 03T-JWPF-VSLE-S, 04T-JWPF-VSLE-S

Keywords:
JST JWPF Waterproof Connector Cable, JWPF Waterproof wire-to-wire harness, Waterproof Connector Harness Assembly

Description:
FLECONN can custom JST 2.0mm Pitch JWPF Wire-to-Wire Waterproof Connector Harness Assembly.

General Description:
Pitch: 2.0mm, Current rating: 3A (22AWG), Voltage rating, 100V, Applicable Wire: Conductor size /AWG #26 to #22AWG, Insulation O.D. 1.4mm to 1.7mm, Wire Stype: UL1007

Product Description

JST 2.0mm Pitch JWPF Wire-to-Wire Waterproof Connector Harness Assembly

Product Description:

FLECONN can custom 2 3 4 6 8 pin 2.0mm pitch JST JWPF series connector wire harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.

I. JSTHousing Series

2.0mm Pitch JST JWPF series wire to wire connector housing

Circuits	Tab Housing	Receptacle Housing
2	02T-JWPF-VSLE-S	02R-JWPF-VSLE-S
3	03T-JWPF-VSLE-S	03R-JWPF-VSLE-S
4	04T-JWPF-VSLE-S	04R-JWPF-VSLE-S
6	06T-JWPF-VSLE-S	06R-JWPF-VSLE-S
8	08T-JWPF-VSLE-S	08R-JWPF-VSLE-S

II. Crimp Terminal

Crimp Terminal: SWPT-001T-P025 (Tab) / SWPR-001T-P025 (Receptacle)

Applicable conductor size: 26AWG - 22AWG

Insulation OD: 1.4mm - 1.7mm

III. Product Specifications

1. Electrical Performance:
Rating voltage: 100V AC DC
Rating Current: 3.0A (22AWG)
Applicable Wire: UL1007 AWG #26 to #22AWG

2. Temperature
operating temperature, fixed installation: -55 to 80c deg.
Service: Wiring Harness OEM
Certificate: CE, RoHS

IV. Product Pictures

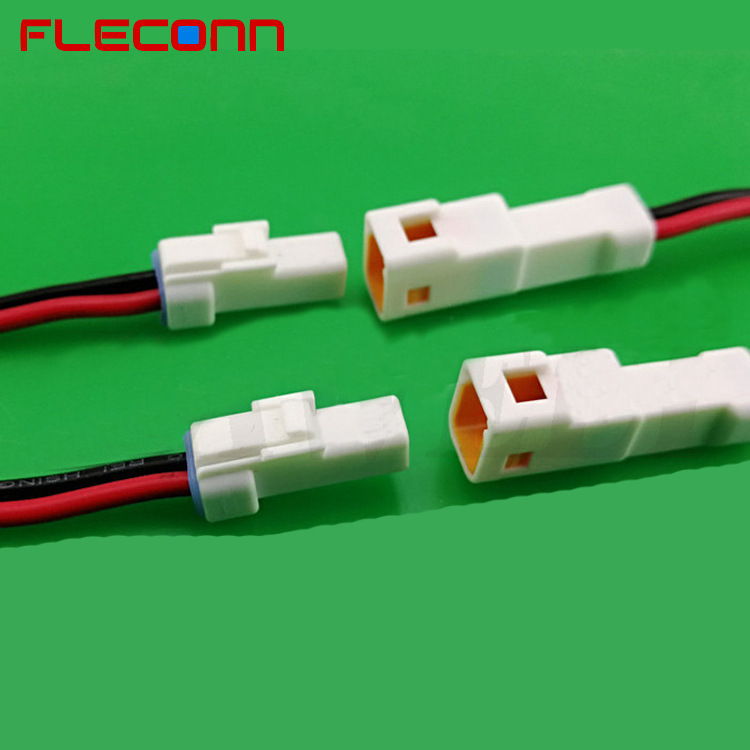

JST 2.0mm Pitch 2 Pin Wire-to-Wire Waterproof Connector Wire Harness

JST 2.0mm Pitch 2 Pin Wire-to-Wire Waterproof Connector Wire Harness.jpg

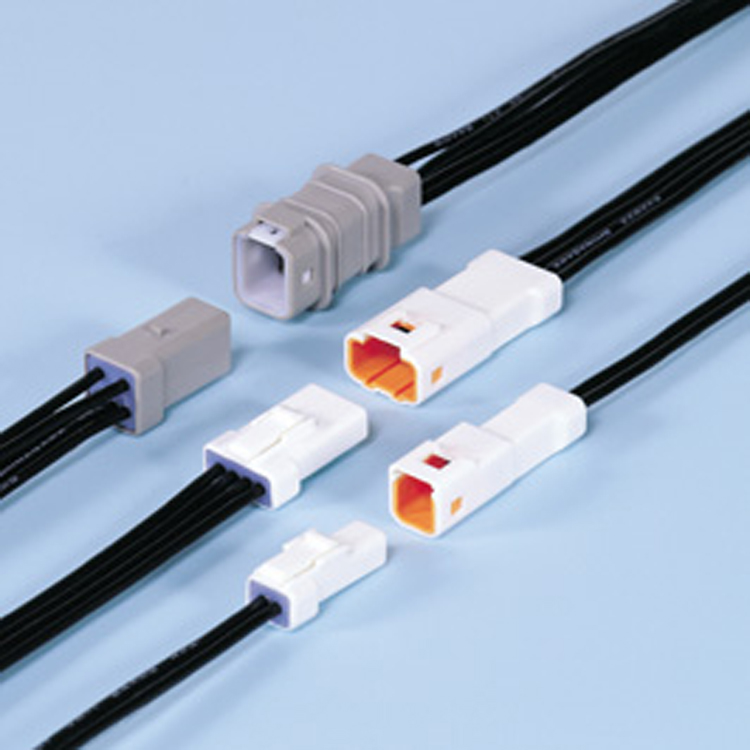

JST 4 Pin Waterproof Wire Harness

JST 4 Pin Waterproof Wire Harness.jpg

2 Pin Waterproof Wire Harness

2 Pin Waterproof Wire Harness.jpg
