JST Pitch 2.0mm PA PAP PARP Wire to Board Connector Harness
  • JST Pitch 2.0mm PA PAP PARP Wire to Board Connector Harness
JST Pitch 2.0mm PA PAP PARP Wire to Board Connector Harness

JST Pitch 2.0mm PA PAP PARP Wire to Board Connector Harness

Part Number:
PAP-02V-S, PAP-03V-S, PAP-04V-S, PAP-05V-S
Keywords:
JST PA Connector Harness, PAP Connector Wire Harness, 2.0mm Pitch PARP Connector Wire Harness
Description:
FLECONN can custom JST Pitch 2.0mm PA PAP PARP Wire to Board Connector Harness with housing of PAP-02V-S, PAP-03V-S, PAP-04V-S, PAP-05V-S, PAP-06V-S, PAP-07V-S, PAP-08V-S, PAP-09V-S, PAP-10V-S, PAP-11V-S, PAP-12V-S, PAP-13V-S, PARP-02V, PARP-03V, PARP-04V, PARP-05V, PARP-06V, PARP-07V, PARP-08V, PARP-09V, PARP-10V, PARP-15V.
General Description:
Pitch: 2.0mm, Current rating: 3A (22AWG), Voltage rating, 100V, Applicable Wire: Conductor size /AWG #28 to #22AWG, Insulation O.D. 0.9mm to 1.5mm, Wire Stype: UL1571, UL1061

Product Description

JST Pitch 2.0mm PA PAP PARP Wire to Board Connector Harness

Product Description:

FLECONN can custom 2 pin - 16pin 2.0mm pitch JST PA PAP PARP series connector wire harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.


I. JSTHousing Series

2.0mm Pitch JST PA series wire to board connector housing

CircuitsHousing  (Standard Type)Housing  (Retainer Mountable Type)
2PAP-02V-SPARP-02V
3PAP-03V-SPARP-03V
4PAP-04V-SPARP-04V
5PAP-05V-SPARP-05V
6PAP-06V-SPARP-06V

7

PAP-07V-SPARP-07V
8PAP-08V-SPARP-08V
9PAP-09V-SPARP-09V
10PAP-10V-SPARP-10V
11PAP-11V-S
12PAP-12V-S
13PAP-13V-S
14PAP-14V-S
15PAP-15V-S
16PAP-16V-S

II. Crimp Terminal

   Crimp Terminal: SPHD-001T-P0.5 / SPAL-002T-P0.5

   Applicable conductor size: 26AWG - 22AWG / 28AWG - 24AWG

   Insulation OD: 1.0mm - 1.5mm / 0.76mm - 1.5mm

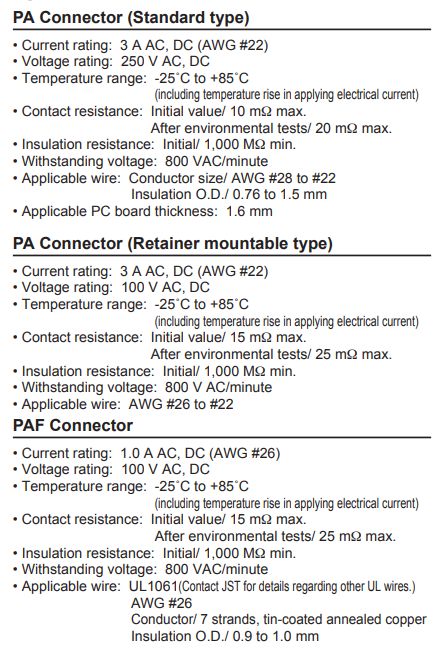

III. Product Specifications


IV. Product Pictures

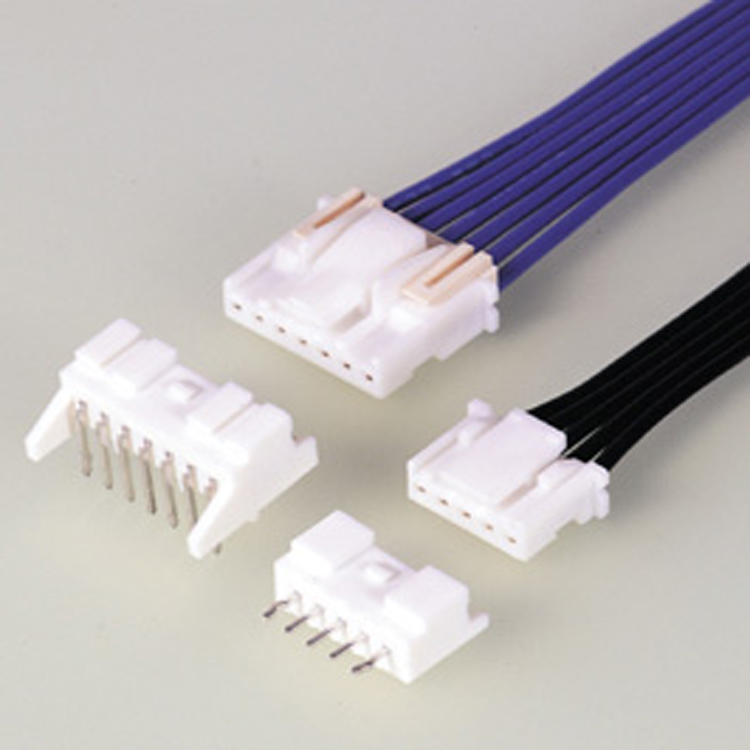

JST 2.0mm Pitch PA Connector Wire Harness

JST 2.0mm Pitch PA Connector Wire Harness.jpg

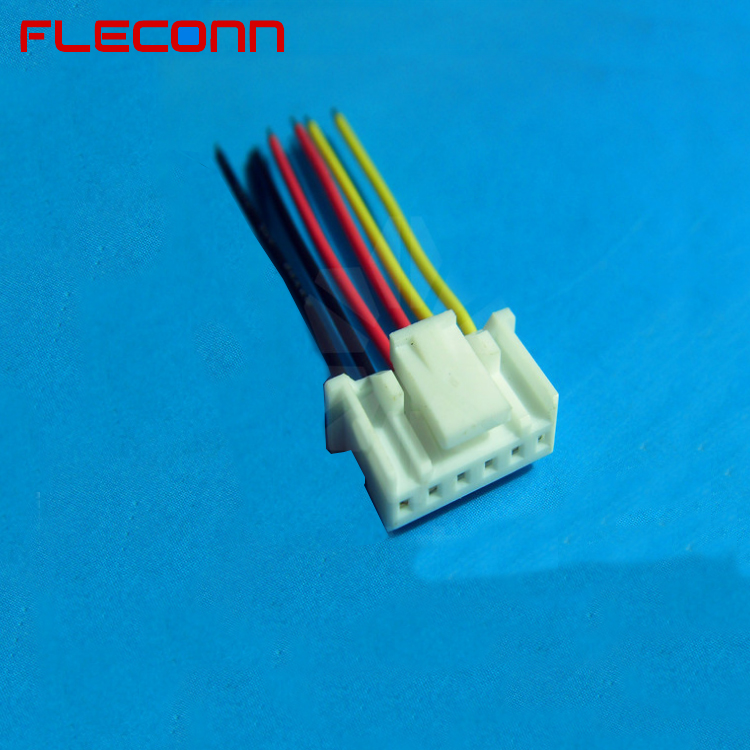

JST 2.0 mm Pitch 6 Pin Wire Harness

JST 2.0 mm Pitch 6 Pin Wire Harness.jpg

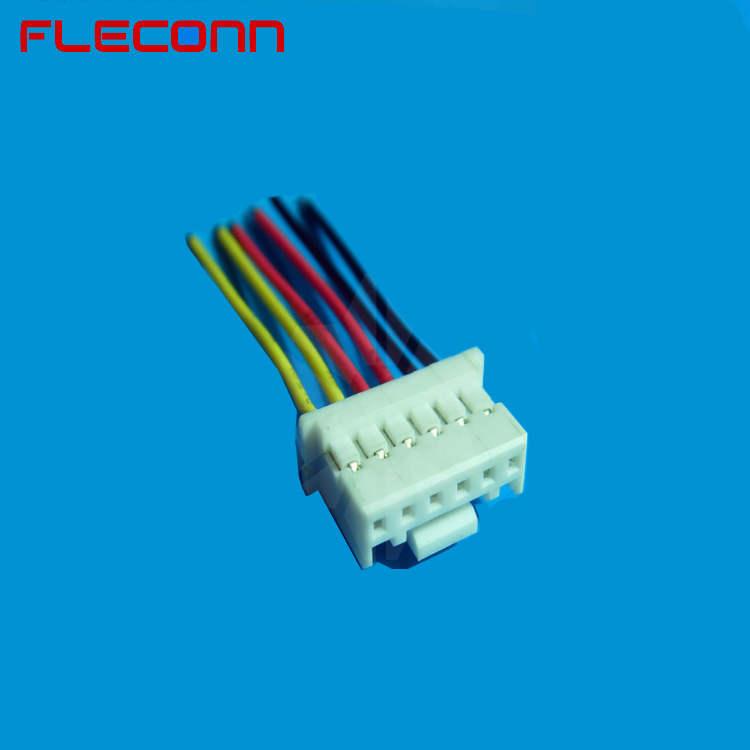

JST 2.0 mm Pitch PAP-06V-S 6 Pin Connector Wire Harness

JST 2.0 mm Pitch PAP-06V-S 6 Pin Connector Wire Harness.jpg

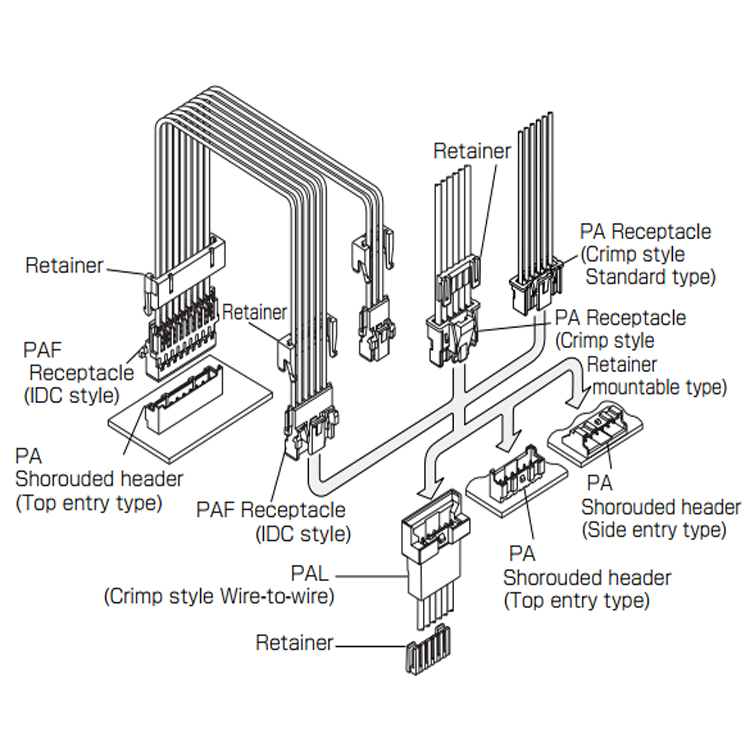

JST PA PAP PARP Connector Wire Harness

JST PA PAP PARP Connector Wire Harness.jpg
