Molex 2.54mm Pitch 70400 Series SL 14-56-7032 3 Pin Connector Wire Harness
  • Molex 2.54mm Pitch 70400 Series SL 14-56-7032 3 Pin Connector Wire Harness
Molex 2.54mm Pitch 70400 Series SL 14-56-7032 3 Pin Connector Wire Harness

Molex 2.54mm Pitch 70400 Series SL 14-56-7032 3 Pin Connector Wire Harness

Part Number:
14-56-7032, 70400-3141, 14-56-7022, 14-56-7042
Keywords:
Molex 70400 Series Cable Assebmlies, SL Connector Wire Harness, 2.54mm Pitch 3 Pin Female Wire to Wire Connector Cable
Description:
FLECONN can assemble molex 2.54mm pitch 70400 series sl 14-56-7032 3 pin connector wire harness. The Connector housing is Female, Single Row, Version G, Positive Lock, Wire Size 22 AWG 3 Core.
General Description:
Connector Series: 70400; Circuit Number: 2 3 4 5 6 7 8 9 10 11 12 circuits; Wire Gauge: UL2464 22AWG 3 core; Gender: Female / Receptacle, Product Name: SL Connector Ribbon / Wire Trap Connectors.

Product Description



Molex 2.54mm Pitch 70400 Series SL 14-56-7032 3 Pin Connector Wire Harness

Product Description:

 FLECONN can assemble molex 2.54mm pitch 70400 series sl 14-56-7032 3 pin connector wire harness. The Connector housing is Female, Single Row, Version G, Positive Lock, Cable specifications are UL2464 wre size 22 AWG 3 Core sheath cable.

Molex SL Modular Connector Wire Harness

With its large number of options and configurations, SL Modular Connectors and Assemblies deliver ideal wire-to-wire solutions and its varying PCB termination methods, including reflow process capable versions, support a range of wire-to-board applications.


I. Housing Series

1.1  Molex 70400 Series  SL 2.54mm pitch wire-to-wire connector housing

CircuitsHousing
214-56-7022
314-56-7032
414-56-7042
514-56-7052
614-56-7062
714-56-7072
814-56-7082
914-56-7092
1014-56-7010
1214-56-7012

II. Crimp Terminal

Crimp Terminal:

Part NumberTittlePlated MaterialApplied Wire Size range
16-02-0086 SL Crimp Terminal, Series 70058, Female, Reel PackingTin (Sn) Plated Contact22-24 AWG

16-02-0087
SL Crimp Terminal, Series 70058, Female, Reel0.38µm Selective Gold (Au) Plated Contact22-24 AWG
16-02-0069SL Crimp Terminal, Series 70058, Female, Reel Packing
Tin (Sn) Plated Contact24-30 AWG
16-02-0082SL Crimp Terminal, Series 70058, Female, Reel Packing0.38µm Selective Gold (Au) Plated Contact24-30 AWG


III. Product Specifications

   1. Electrical Performance:
   Rating voltage: 300V AC
   Rating Current: 3A (22AWG)

   2. Temperature
   operating temperature, fixed installation: -40°C to +105°C

   Service: Wiring Harness OEM
   Certificate: CE, RoHS

IV. Product Pictures

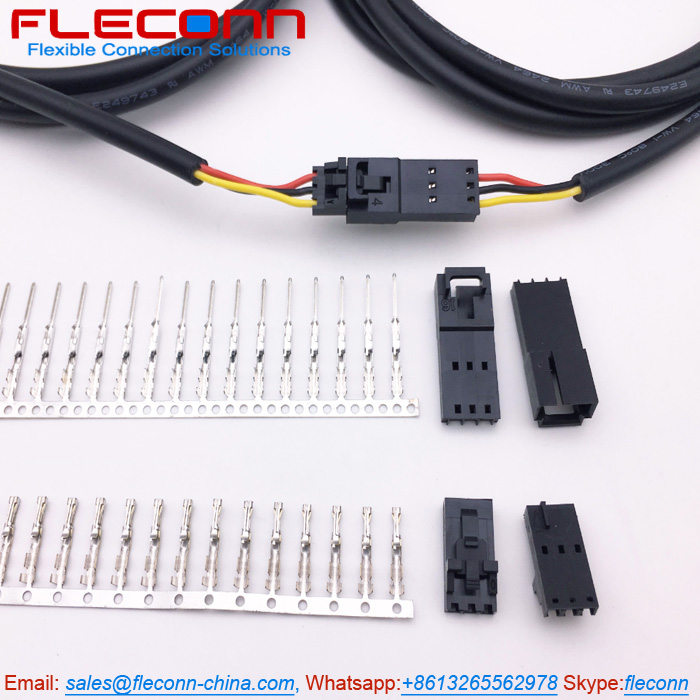

Molex 2.54mm Pitch 70400 Series SL 3 Pin Connector Wire Harness with UL2464 22AWG 3 Core Cable

Molex 2.54mm Pitch 70400 Series SL 3 Pin Connector Wire Harness with UL2464 22AWG 3 Core Cable.jpg

Molex 2.54mm Pitch SL 14-56-7032 3 Circuits Female Single Row Connector Wire harness

Molex 2.54mm Pitch SL 14-56-7032 3 Circuits Female Single Row Connector Wire harness.jpg

Molex SL 70400-3141 3 Pin Wire Harness, Housing with Positive Lock, Wire Size 22 AWG

Molex SL 70400-3141 3 Pin Wire Harness, Housing with Positive Lock, Wire Size 22 AWG.jpg

Molex 70400 Series SL 3 Pin Connector Wire Harness with Version G Housing

Molex 70400 Series SL 3 Pin Connector Wire Harness with Version G Housing.jpg

Molex 2.54mm Pitch SL 3P 3Pin Connector Cable Assembly

Molex 2.54mm Pitch SL 3P 3Pin Connector Cable Assembly.jpg
