M12 A-Coded 4 Pole Female 90 Degree Angled Cable
  • M12 A-Coded 4 Pole Female 90 Degree Angled Cable
M12 A-Coded 4 Pole Female 90 Degree Angled Cable

M12 A-Coded 4 Pole Female 90 Degree Angled Cable

Part Number:
M12AF-RA-04P-22A-01M-PVC-01
Keywords:
M12 90 Degree Cable, M12 4 Pole Female Angled Cable, M12 90 Degree Angled Cable
Description:
FLECONN can custom high quality m12 a-coded 4 pole female 90 degree angled cable for IP67 waterproof outdoor LED lights.
General Description:
Connection body polarity: Female; Coding: A-Code; Shape: 90 degree angled; Terminal Connecting Method: soldering; Contacts number: 4 pin; Cable length: 1.5 meter, 6ft; Cable Specifications: UL2464 AWG22 * 4C PVC Cable

Product Description

M12 A-Coded 4 Pole Female 90 Degree Angled Cable

FLECONN can custom high quality m12 a-coded 4 pole female 90 degree angled cable for IP67 waterproof outdoor LED lights.

Product characters for M12 90 Degree Cable

Contact Body Type: Female.

Coding Type: A-Coded.

Connector Cable Shape:  90 degree angled.

Terminal Connecting Method: solde wire;

Contacts number: 4 pin;

Cable lenght: 2 3 5 6 meters available;

Cable Specifications: UL2464 AWG22 * 4C PVC Cable


Technique Specifications for this M12 4 Pole Female Angled Cable

Number of Contacts              2,        3,        4,        5,        6,              8                12

Rated Voltage                                       250V                                    60V            30V

Rated Current                                        4A                                       1A              0.5A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ                                        1.0±0.03                               0.8±0.03          0.6±0.03

Wire Gauge                                        22AWG                               26AWG            28AWG

Cable Jacket  PVC or PUR

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated

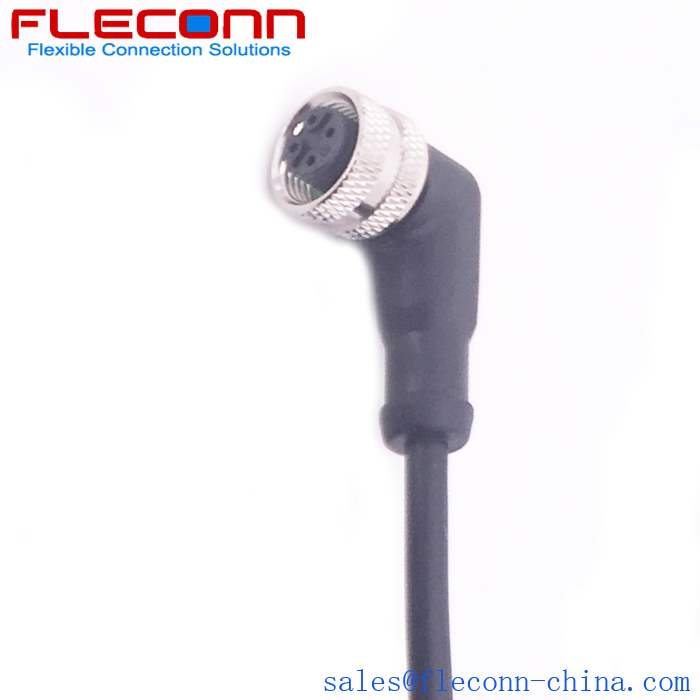

Product Pictures for M12 90 Degree Angled Cable

M12 A-Coded 4 Pole Female 90 Degree Angled Cable

M12 A-Coded 4 Pole Female 90 Degree Angled Cable Supplier and Manufacturer in China
