M12 connector, made by international standard, number of cores has 3 pin 4 pin 5 pin 8 pin,12 pin 17 pin. According to international standards, it is used in various fields and is one of the major electronic components connecting power and signal.
M12 circular connector with a high signal integrity and excellent performance is a type of high standard connector conforming to the European Union standard.
M12 waterproof connectors, combining characteristics of power cable and data cable, with the characteristics of little occupied area and reducing the cost of installation, are suitable for process automatic control and industrial application, automation equipment, electronic equipment, electronic instrumentation, sensors, commercial transportation, and military/aerospace applications.
Using 4 / 5 contact m12 connector, each contact is able to carry the highest current 4A, and 6 / 8 position m12 connector's pin can carry 2A current, 12 pole / 17 pole m12 connectors' pin can carry 1.5A current.
Overmolded m12 connector cable is made by injection molding technology and it can ensure perfect IP67 seal class and provide the reliable stress relieving capacity.
Classified according to outline shape: circular electric connector (also divided into M12 connector, M8 connectors), rectangle electric connector (overloaded connector).
M12 connectors have the effect of signal connection between all kinds of instruments and equipment.
M12 connector with 3 pin 4 pin 5 pin 6 pin 8 pin 12 pin 17 pin insulation housing can be assembled with straight and right angled plastic and metal outer shell. These m12 cable connectors are field wireable, installable and attachable with solder cup terminals and screw terminals. The insulation housing of m12 connector have A-Coding, B-Coding, D-Coding, X-Coding available. These types of M12 male and female connectors can provide fast connections in the fields of sensor and actuator, automation system and other industrial applications. Their environment protection class achieves IP67 waterproof rating.
M12 panel mount connector with 3 4 5 6 8 12 17 Pin male plug and female socket and gold-plated contacts available can be provided by FLECONN. In order to determine the direction of the angled cable outlet of the mating connector, we can provide 90 degree right angled M12 panel mount connectors with 4, 5 and 8 position in wire solder pin and PCB DIP solder pin. When completely mated the connectors are IP67 rated to ensure protection from liquids and dust.
FLECONN offers a complete line of A-Coded 3 pin, 4 pin, 5 pin, D-coded 4 Pin, X-coded 8 Pin DIP solder m12 pcb connector for connecting Input/output ports in the controlling panels of industry automation system, robots, intelligence equipments, factory automation etc. These quality constructed M12 connectors provide years of trouble free use in the most trying applications. These m12 pcb panel mount connectors are offered in both male and female versions and are rated to IP67 when mated.
M12 X-coded connector is more and more applied in the fields of gigabit industry Ethernet with high bandwidths requirements such as rail transit, vision systems, broadcast, security and control cameras, factory automation systems. M12 X-Coding Connector can be suitable for stringent environment for their owning 4 pair connection face with paired shielding.By the special structure design, M12 X-code connector can achieve maximun data transmission rate and minimal interaction and excellent shielding. more and more applied in the fields of gigabit industry Ethernet with high bandwidths requirements such as rail transit, vision systems, broadcast, security and control cameras, factory automation systems. M12 X-Coding Connector can be suitable for stringent environment for their owning 4 pair connection face with paired shielding.By the special structure design, M12 X-code connector can achieve maximun data transmission rate and minimal interaction and excellent shielding.
They have the following Features and specifications:
Compact, robust design
Fully shielded
Wire Guage: AWG 28 to AWG 24
High speed transfer rates to 1 / 10 Gbit
Cat. 6A up to 10 Gigabit
Temperature Range: -25 °C to 85 °C
Protection class IP 65/67/IP68 available

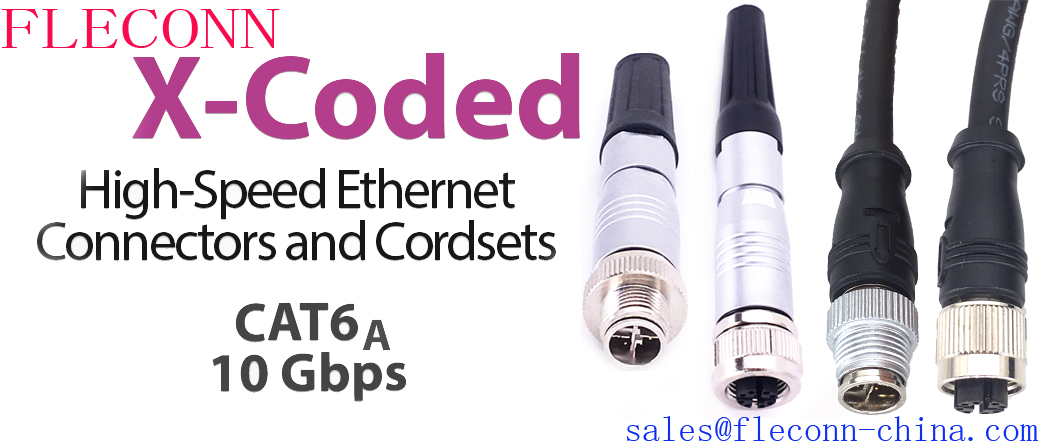

M12 X Coded Cat6A Gigabit Ethernet connector
If you want to buy M12 4 position D-Code Ethernet connector, you may click this hyperlink M12 D-Coded Connector and reach your required page.
FLECONN's M12 D-Coded connector has an standard interface for industry Ethernet and PROFINET and meets ANSI/TIA and ISO/IEC 11801 Ed 2.2 Cat 5e specifications. This type of M12 D-Code connector with a compact, robust, reliable connection can be used in industrial automation environments or other harsh environment applications.
FLECONN's M12 D-Coded cable assemblies combine a specially designed PVC/PUR cable jacket with an overmolded connector to provide an IP67 waterproof rating. These robust cord-sets also provide protection from other common industrial elements including EMI, chemicals and mechanical stress. Available with straight or angled connectors and RJ45 male connector options, the M12 D-Coded cable cordsets are part of FLECONN's wide selection of industrial Ethernet cord-sets which are able to satisfy most industrial switch, sensor and control applications.
If you want to buy M12 8 position X-Code Cat6A Gigabit Ethernet Connector, you may click this hyperlink M12 X-Coded Connector and reach your required page.
