M12 X Coding Connector, Cat6A Ethernet Connector, Shielded Female 8 Pin

Part Number:
M12-X-F-MS-08

Keywords:
M12 X Coding Connector, Female, Cat6A Ethernet Connector

Description:
This is X Coded M12 female connector with the stainless steel Metal shell that can shield external electromagnetic interference.

General Description:
M12 8 Position X-Coded Connector conforms to IEC 61076-2-109 GbE ( gigabit Ethernet ) Cat6A Ethernet stantard and can achieve the biggest High-Speed 10Gbps.

Product Description

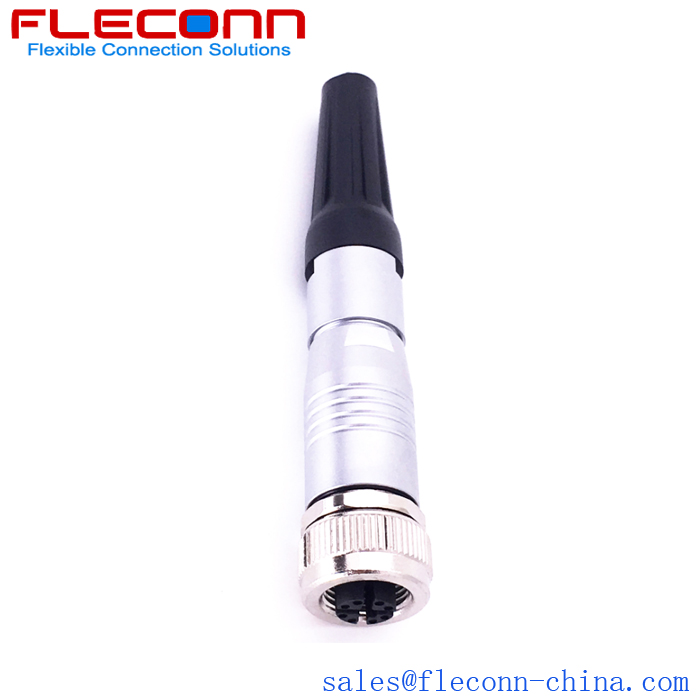

M12 X Coding Connector, Cat6A Ethernet Connector, Shielded, Female, 8 Pin

M12 connectors conform to IEC 61076-2-109 GbE ( gigabit Ethernet )

Product Features：

Products Type: M12 Industry Ehternet Connector

Contact Body Type: Female

Coding Type: X Coding.

Plug Type: straight type

Wiring Method: Soldering

Contacts: 8 pin

Installation Method: M12 screw mount

Part Number:M12-X-F-MS-08

M12 X-coded 8 Pin Female Connector Pinout and coding structure

M12 X-coded 8 Pin Female Connector Pinout and coding structure.jpg

Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ～+85℃

Cable diameter ≤ φ5.0-8.0mm

Specification

Number of Contacts 8

Rated Voltage 48V

Rated Current 4A

Contact Resistance <5mΩ

Insulation Resistance >100MΩ

Temperature Range -20℃ to +85℃

Degree of Protection IP67 when mated

Mating Times 100 cycles

Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated

Other connectors are similar with m12 x-coded female connector
