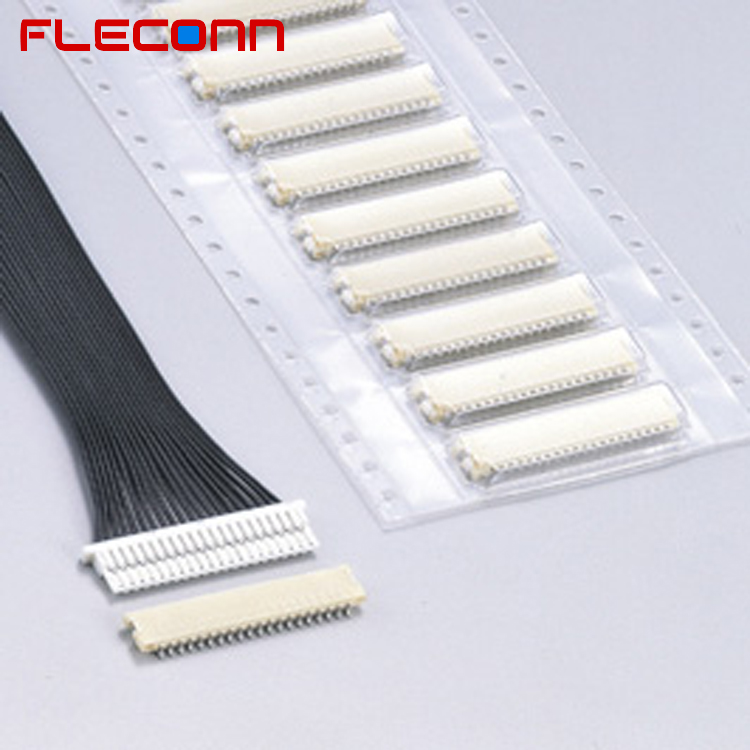

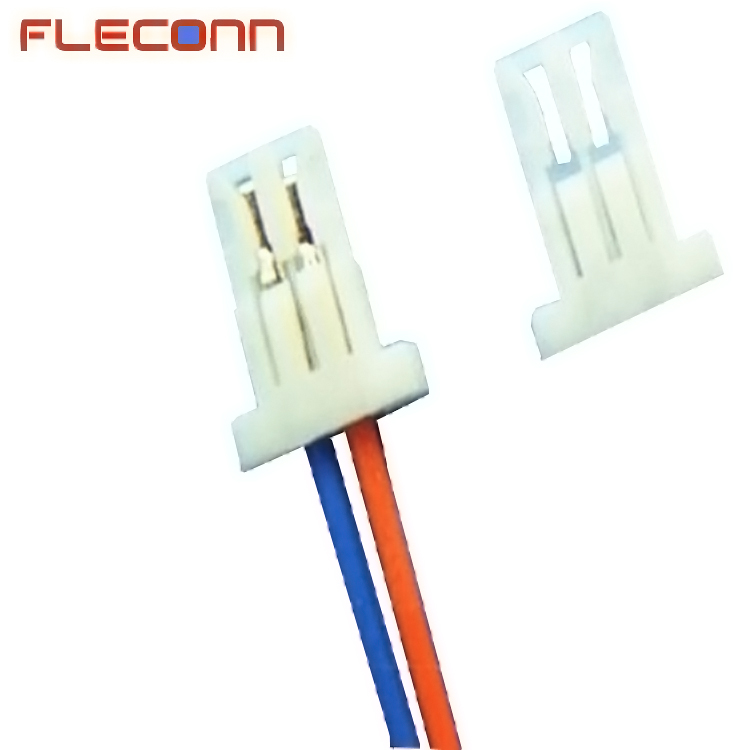

1.0mm Pitch JST SHL Connector Wire Harness, 2 5 6 7 8 10 12 20 Pin

Part Number:
SHLP-02V-S-B, SHLP-05V-S-B, SHLP-06V-S-B

Keywords:
JST SHL Connector Wire Harness, SHL Series Wire Harness, JST 2 Pin Wire Harness

Description:
FLECONN can assemble JST 1.0mm pitch SHL Connector wire harness with 2 5 6 7 8 10 12 20 pin circuit housing

General Description:
Pitch: 1.0mm, Current rating: 1A, Voltage rating, 50V, Applicable Wire: Conductor size /AWG #32 to #28AWG, Insulation O.D. 0.4 to 0.8mm

Product Description

1.0mm Pitch JST SHL Connector Wire Harness, 2 5 6 7 8 10 12 20 Pin

Product Description:

FLECONN can custom jst SHL series wire-to-board connector wire harness for manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.

I. JST Housing Series

Circuits	Housing
2	SHLP-02V-S-B
5	SHLP-05V-S-B
6	SHLP-06V-S-B
7	SHLP-07V-S-B
8	SHLP-08V-S-B
10	SHLP-10V-S-B
11	SHLP-11V-S-B
12	SHLP-12V-S-B
14	SHLP-14V-S-B
16	SHLP-16V-S-B
20	SHLP-20V-S-B
22	SHLP-22V-S-B
26	SHLP-26V-S-B
30	SHLP-30V-S-B
