3.96mm Pitch VHR-2N 2 Pin JST VH Series Connector Wire Harness
VHR-2N
2 Pin 3.96mm Pitch Wire Harness, JST 2Pin VHR-2N Wire Harness, 3.96mm pitch 2 way wire harness
FLECONN can custom 3.96mm pitch VHR-2N 2 Pin / way / circuit JST VH series connector wire harness.
Product Description
3.96mm Pitch VHR-2N 2 Pin JST VH Series Connector Wire Harness
Product Description:
FLECONN can custom 3.96mm pitch VHR-2N 2 Pin / way / circuit JST VH series connector wire harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.
I. Housing Series
1.1 3.96mm pitch JST VH series wire-to-board housing
| Circuits | Receptacle Housing |
| 2 | VHR-2N |
| 3 | VHR-3N |
| 4 | VHR-4N |
| 5 | VHR-5N |
| 6 | VHR-6N |
| 7 | VHR-7N |
| 8 | VHR-8N |
| 9 | VHR-9N |
| 10 | VHR-10N |
| 11 | VHR-11N |
II. Crimp Terminal
Crimp Terminal: SVH-21T-P1.1 / SVH-41T-P1.1
Applicable Wire: 22AWG - 28AWG / 20AWG - 16AWG
Insulation OD: 1.7mm - 3.0mm / 1.7mm - 3.0mm
III. Product Specifications
1. Electrical Performance:
Rating voltage: 250V AC DC
Rating Current: 10A (16AWG)
2. Temperature
operating temperature, fixed installation: -25 to 80c deg.
Service: Wiring Harness OEM
Certificate: CE, RoHS
IV. Product Pictures

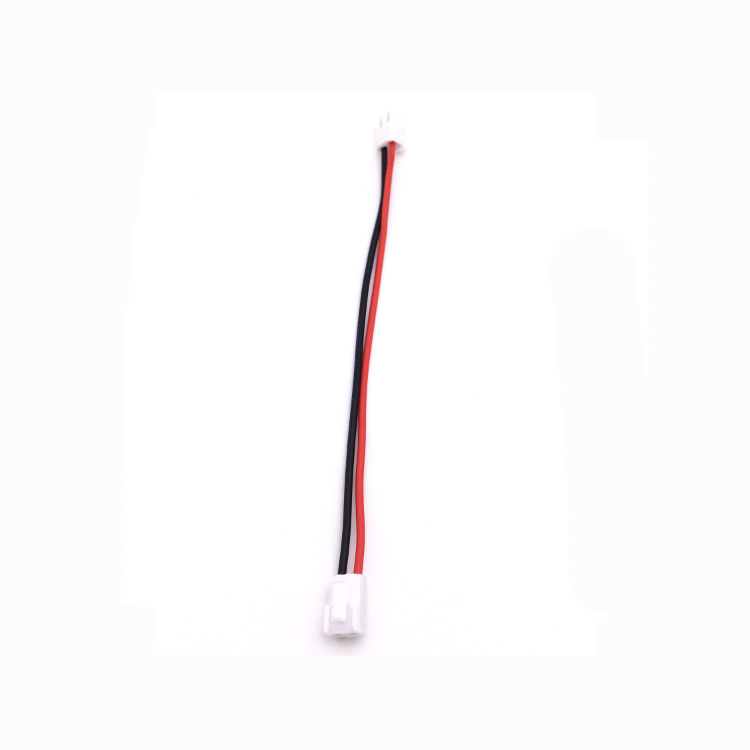

3.96mm Pitch JST VHR-2N 2 Pin Connector Wire Harness

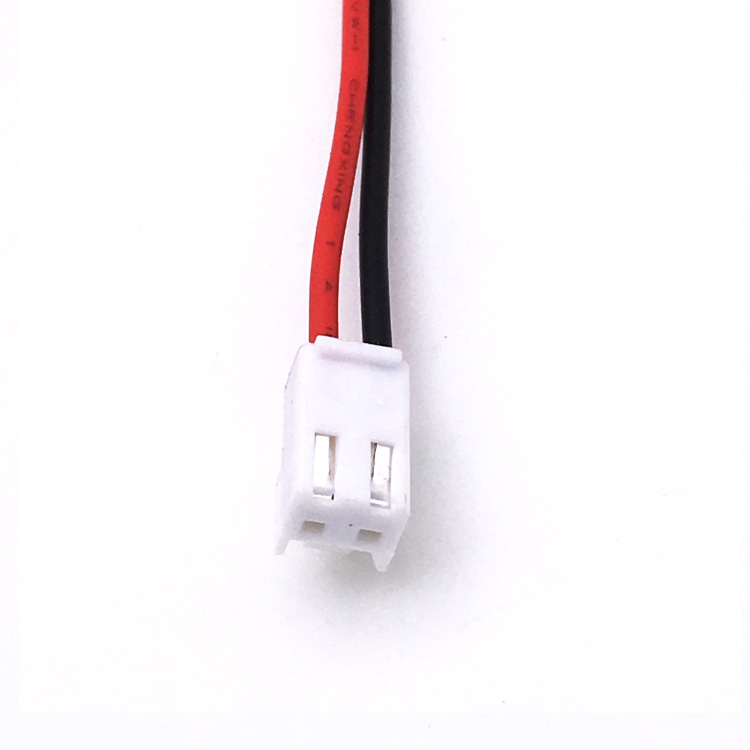

3.96 mm Pitch 2 Pin Connector Wire Harness

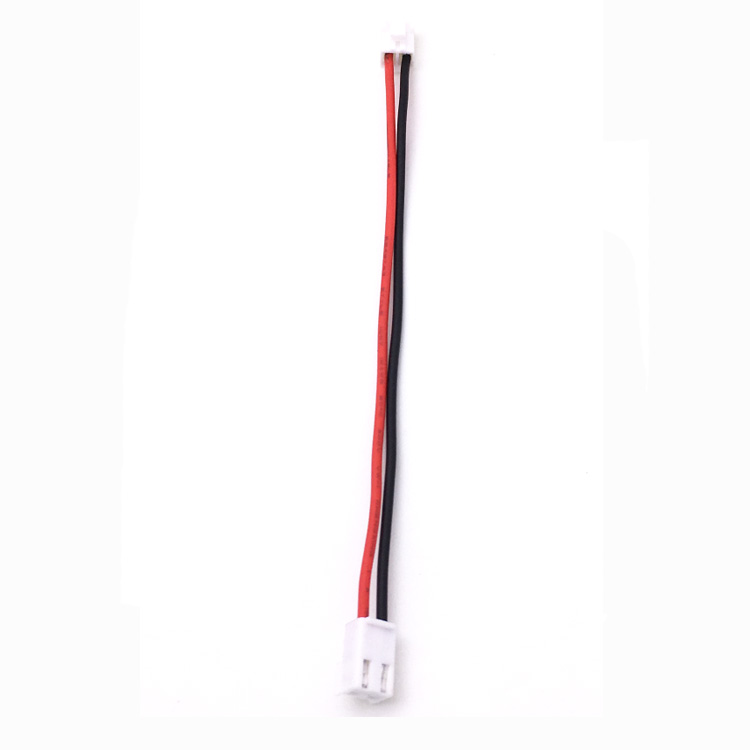

JST 2 Position Wire Harness with UL 1007 18AWG 20AWG 22 AWG Electrical Wire

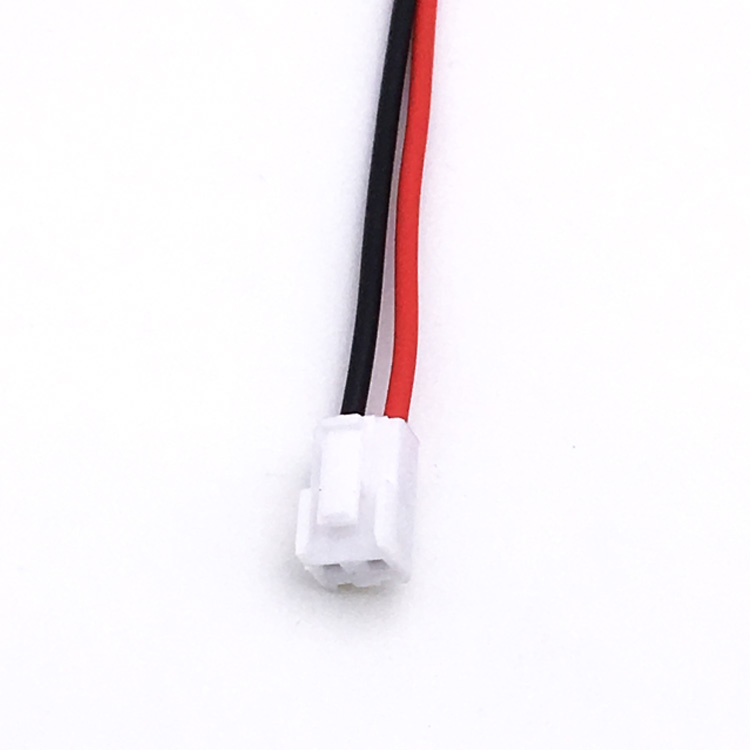

3.96mm Pitch VH Series 2 Way Connector Wire Harness

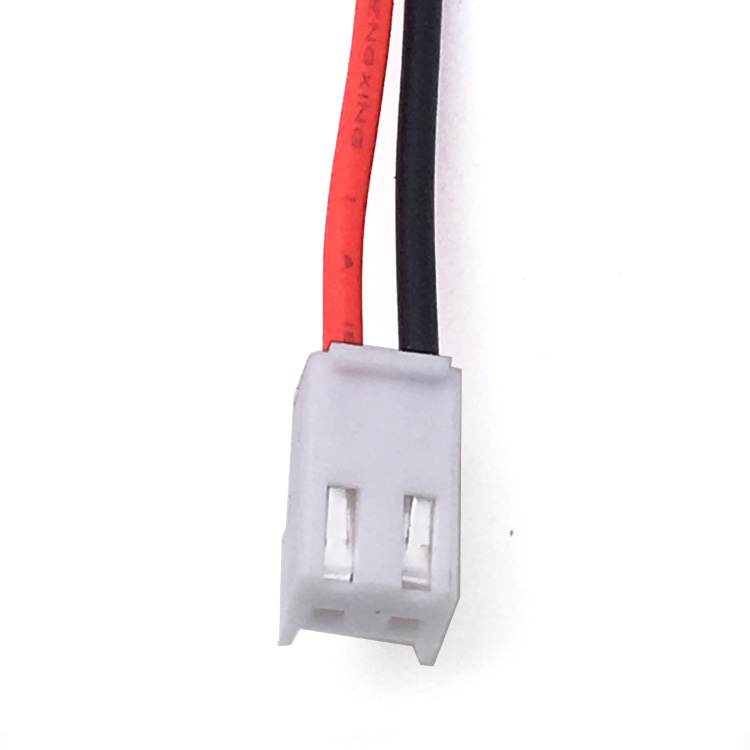

JST 3.96mm Pitch VHR-2N 2 Circuit Wire Harness
