Product Description

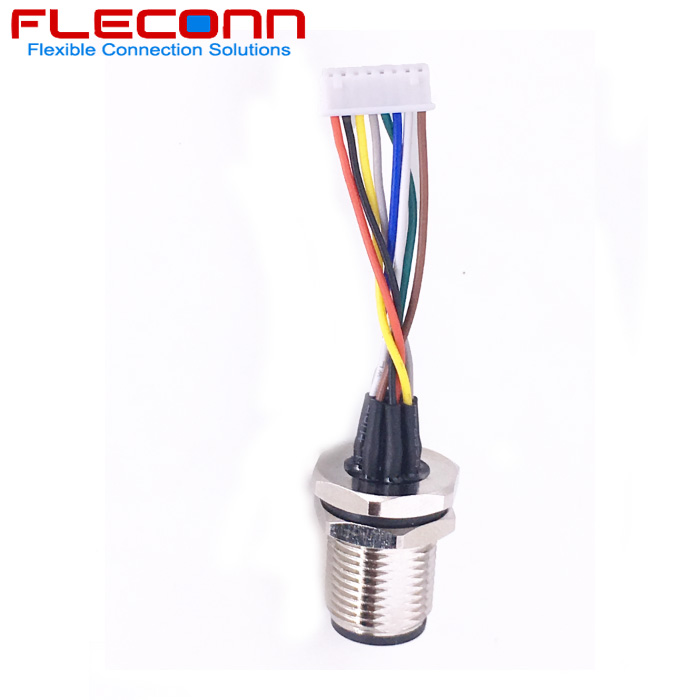

M12 8 Pin Rear Mount Connector to Molex 51021-0800 PicoBlade Wire Harness

FLECONN can custom m12 8 pin rear mount connector to molex 51021-0800 picoblade connector wire harness for the signal and DC power transmition of industry automation system.

Last Product: M12 8Pin Male Panel Mount Connector with M12X1 Mounting Thread

Next Product: M12 8 Pole A Coding Male Panel Mount Connector with Litz Wires

Product Features：

Products Type: 8 Pin Connector Wire Harness

P1: M12 8 Pin Rear Mount Connector

P2: Molex 51021-0800 PicoBlade Connector

Wire Guage: UL1571 28AWG 40mm long Wires.

Contacts: 8 Pin

Part Number: M12AM08P-FF-01-MX-51021-0800-WH

Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ～+85℃

Specification

Number of Contacts  8

Rated Voltage 60V

Rated Current 1A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ 0.8±0.03

Wire Gauge 28AWG

Single Wire Insulation Material PVC

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated

Other connectors are similar with m12 panel mount connector
