M12 8Pin Male Panel Mount Connector with M12X1 Mounting Thread

Send Inquiry Now

M12 8Pin Male Panel Mount Connector with M12X1 Mounting Thread

M12 8Pin Male Panel Mount Connector with M12X1 Mounting Thread

Part Number:
M12AM08P-FF-01-MX-51021-0800-WH

Keywords:
M12 8Pin Male Connector, M12 8Pin Panel Mount Connector, M12 8Pin Connector with M12X1 Mounting Thread

Description:
FLECONN can supply m12 8pin male panel mount connector with m12x1 mounting thread.

General Description:
Products Type: 8 Pin Connector Wire Harness, P1: M12 8 Pin Rear Mount Connector, P2: Molex 51021-0800 PicoBlade Connector, Wire Guage: UL1571 28AWG 40mm long Wires. Contacts: 8Pin

Product Description

M12 8Pin Male Panel Mount Connector with M12X1 Mounting Thread

FLECONN can custom m12 8 pin rear mount connector to molex 51021-0800 picoblade connector wire harness for the signal and DC power transmition of industry automation system.

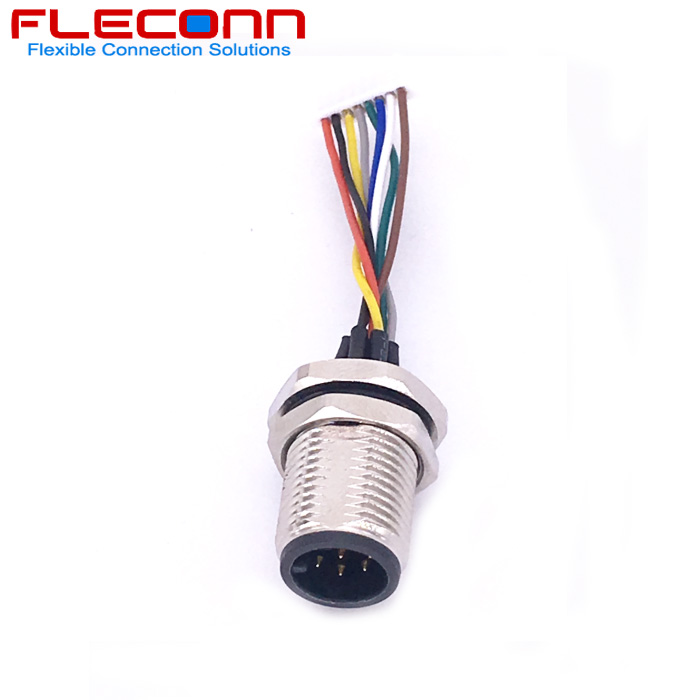

M12 8Pin Male Panel Mount Connector with M12X1 Mounting Thread.jpg

Last Product: M12 8 Position A-Code Male Panel Mount Connector with Pigtail, screwed from front

Next Product: M12 8 Pin Rear Mount Connector to Molex 51021-0800 PicoBlade Wire Harness

Product Features：

Products Type: 8 Pin Connector Wire Harness

P1: M12 8 Pin Rear Mount Connector

P2: Molex 51021-0800 PicoBlade Connector

Wire Guage: UL1571 28AWG 40mm long Wires.

Contacts: 8 Pin

Part Number: M12AM08P-FF-01-MX-51021-0800-WH

Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ～+85℃

Specification

Number of Contacts 8

Rated Voltage 60V

Rated Current 1A

Contact Resistance <5mΩ

Insulation Resistance >100MΩ

Pollution Degree 3

Temperature Range -20℃ to +85℃

Degree of Protection IP67 when mated

Mating Times 100 cycles

Nom Pin φ 0.8±0.03

Wire Gauge 28AWG

Single Wire Insulation Material PVC

Material of Housing Brass Nickel Plated

Material of lnsertion PA66+GF UL94V-0

Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated

Other connectors are similar with m12 panel mount connector
