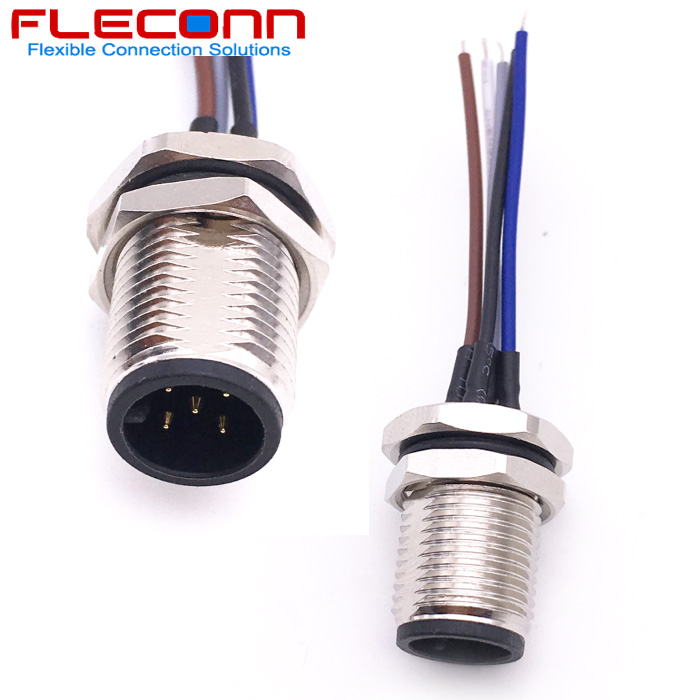

M12 5 Pin A-Code Male Rear Panel Mount Connector with 24AWG Pigtails

FLECONN can provide m12 5 pin a-code male rear panel mount connector with 24awg pigtails for the signal and DC power transmition of industry automation system.

Next Product: M12 5 Pin A-Coded Panel Mount Connector with UL 1007 24AWG Single wires

Product Features：

M12 connectors conform to IEC 61076-2-104

Products Type: M12 Rear Panel Mount Connector

Contact Body Type: Male

Coding Type: A-Code

Plug Type: straight type

Wiring Method: Soldering

Contacts: 5 Pin

Installation Method: Rear Mounting, front fastened by metal nut.

Part Number: M12-M-A-P2-5P

Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ～+85℃

Specification

Number of Contacts  5

Rated Voltage 120V

Rated Current 3A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ 1.0±0.03

Wire Gauge 24AWG

Single Wire Insulation Material PVC

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated

Other connectors are similar with m12 panel mount connector
