Product Description

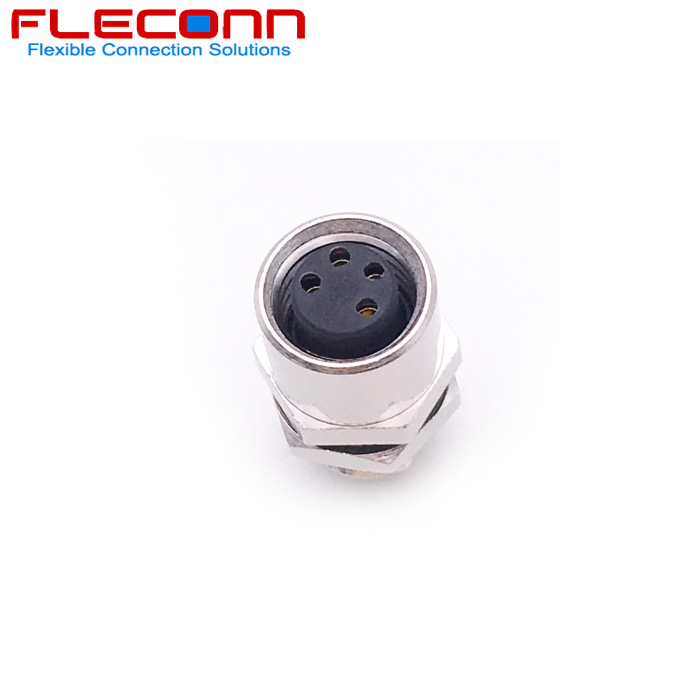

M8 4 Pole Female Front Panel Mount Sensor Connector, Screwed from Rear

FLECONN can provide m8 4 pole female front panel mount sensor connector, screwed from rear for industry automation sensor systems.

Last Product: M8 4 Pin Female Panel Mount Connector IP67 Waterproof Rating

Next Product: M8 4Pin Female Panel Mount Connector, Fixing Thread M10 x 0.75

Product Features：

Products Type: M8 Circular Connector

Contact Body Type: Female

Coding Type: A Code

Plug Type: 180 degree straight type

Assembly Method: Soldering

Contacts number:  4 Pole

Installation Method: Rear Panel Mount

Part Number:M8-F-A-PM-04

The hole place arranges(Comply with the needle direction)

Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ～+85℃

Cable diameter ≤ φ3.3-5.0mm

Specification

Number of Contacts                   3,         4,        5,               6,       8

Rated Voltage                                      60V                           30V

Rated Current                                       4A                            1.5A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ                                        1.0±0.03                      0.8±0.03

Wire Gauge                                         24AWG                       26AWG

Cable Jacket  PVC or PUR

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated
