M12 D-Coded to RJ45 Cable, Green Jacket, 4-pole Plug, 1.0m
M12DF-RJ45M-GC-1M
M12 D-Coded to RJ45 Cable, M12 4-pole Straight Plug, Green Sheath
FLECONN can custom m12 d-coded to rj45 cable with 4-pole female plug 1.0m green jacket cable.
Product Description

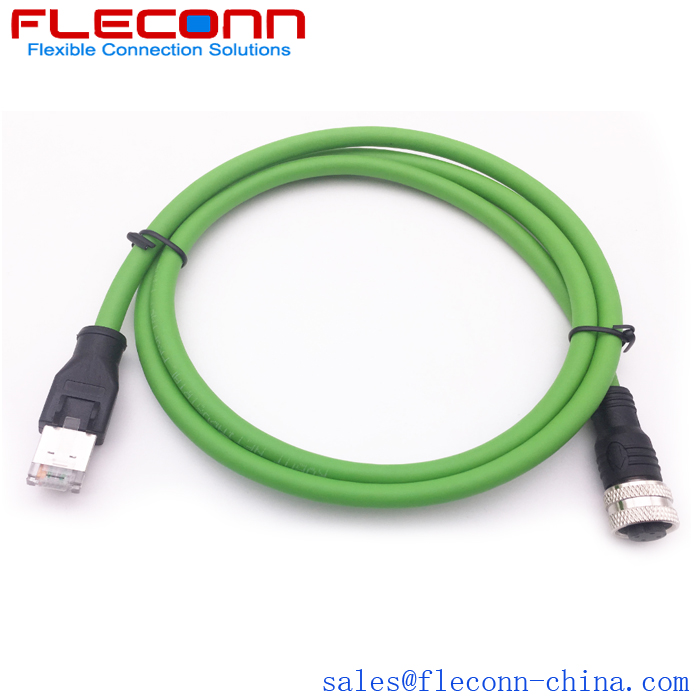

M12 D-Coded to RJ45 Cable, Green Jacket, 4-pole Plug, 1.0m
FLECONN can custom m12 d-coded to rj45 cable with 4-pole female plug 1.0m green jacket cable for industry Ethernet and profitnet system.
Product Features：
Connector 1 : M12 d-Coded Female straight plug
Connector 2: RJ45 male connector
Cable Specifications: Cat5e 2x2 24AWG shielded green cable
Plug Type: straight molding type
Wiring Method: Soldering
Contacts: 4-Pole
Installation Method: M12 screw mount
Cable Length: 1M
Part Number: M12DF-RJ45M-GC-1M/02M/03M/5M/6M/8M/10M
RJ45 to M12 D-Coded Cable
M12 4-Pole D-Coded to RJ45 PROFINET Cable with Green Jacket
Material and specifications
Coupling Threaded coupling
Shell material Brass nickle plated
Insert material PA66+30%GF
Contact material copper(silver /gold plated)
Termination Soldering
Temperature Range -25℃ ～+85℃
Cable diameter ≤ φ5.0-8.0mm
Specification
Number of Contacts 4 Pole
Rated Voltage 48V
Rated Current 1.5A
Contact Resistance <5mΩ
Insulation Resistance >100MΩ
Temperature Range -20℃ to +85℃
Degree of Protection IP 67/IP 68 when mated
Mating Times 100 cycles
Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated
Cable length customized length by customer's requirement.
