M16 4 Pin Panel Mount Connector
Part Number:
M16-A-F-PM-4P
M16-A-F-PM-4P
Keywords:
M16 4 Pin Panel Mount Connector
M16 4 Pin Panel Mount Connector
Description:
This is M16 female connector with solder cups, The installation method is rear panel mount by fixing thread.
This is M16 female connector with solder cups, The installation method is rear panel mount by fixing thread.
General Description:
Products Type: M16 Panel Mount Connector. Contact Body Type: Female. Coding Type: A Coding. Contacts: 4 pin. Installation Method: Rear Panel Mount.
Product Description

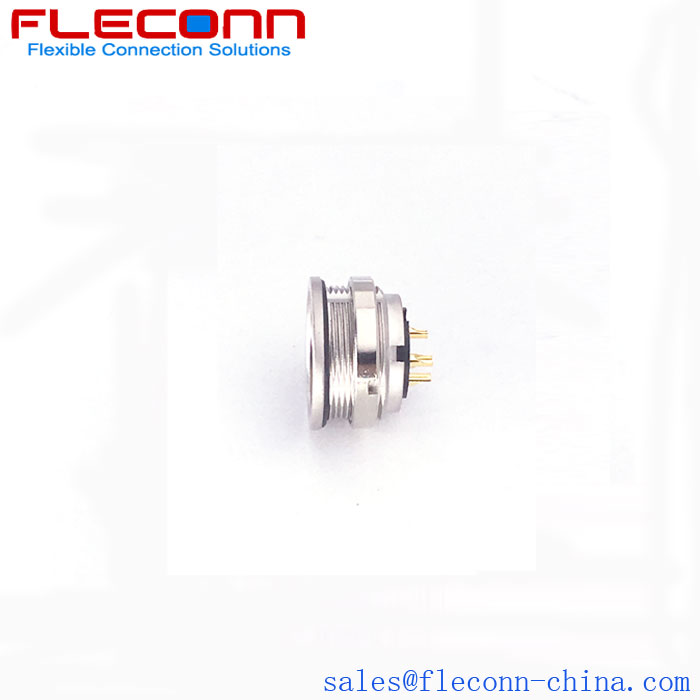

M16 4 Pin Panel Mount Connector
FLECONN can supply high quality m16 4 pin panel mount connector with solder terminals for industrial automation sensor and actuator connection system.
m16 4 pin panel mount connector
1. The product Features for m16 4 Pin panel mount connector.
Connector Series: M16 Circular interface.
Gender: female.
Coded: A-Coding.
Contacts: 4 pin.
Terminations: Solder Cup Terminals.
2. The Mechanical and Electrical Characters for m16 4 pin panel mount connector.
Connector locking system：M16 screw thread
Wire gauge (mm) 0.51 mm²
Wire gauge (AWG) 20
Degree of protection IP67
Upper temperature95 °C Lower temperature-40 °C
Rated voltage 250 V
Rated impulse voltage 1500 V
Pollution degree I
Overvoltage category I
Material group III
Rated current ： 6A
Volume resistivity≤ 3 mΩ (Gold)
Material of Contact: CuSn
Contact Plating: Gold-plated
Other connectors are similar with m16 panel mount connector
