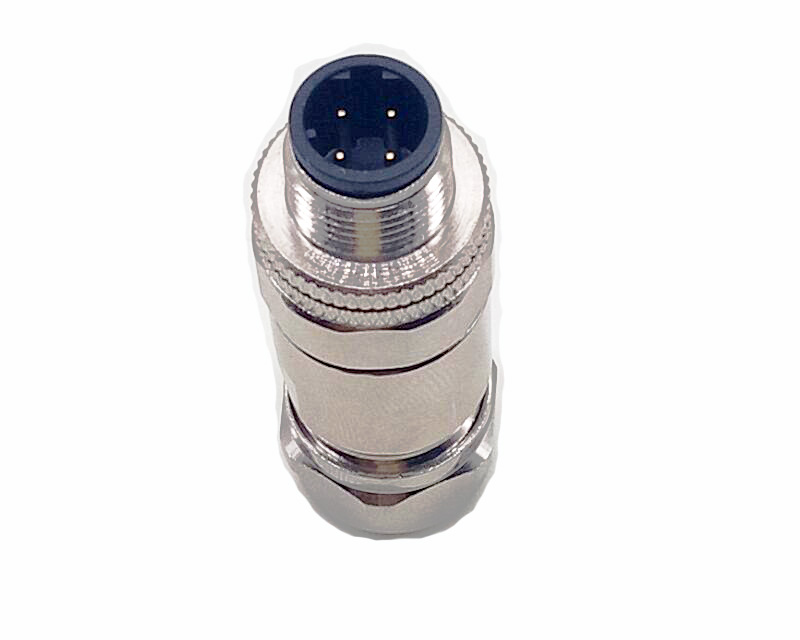

M12 D-Coded Male Connector, Field Installable,4 Pin Soldering Terminal
Part Number:
M12-D-M-MS-08
M12-D-M-MS-08
Keywords:
M12 D-Coded Male Connector, Field Installable, 4 Pin Ethernet Connector,
M12 D-Coded Male Connector, Field Installable, 4 Pin Ethernet Connector,
Description:

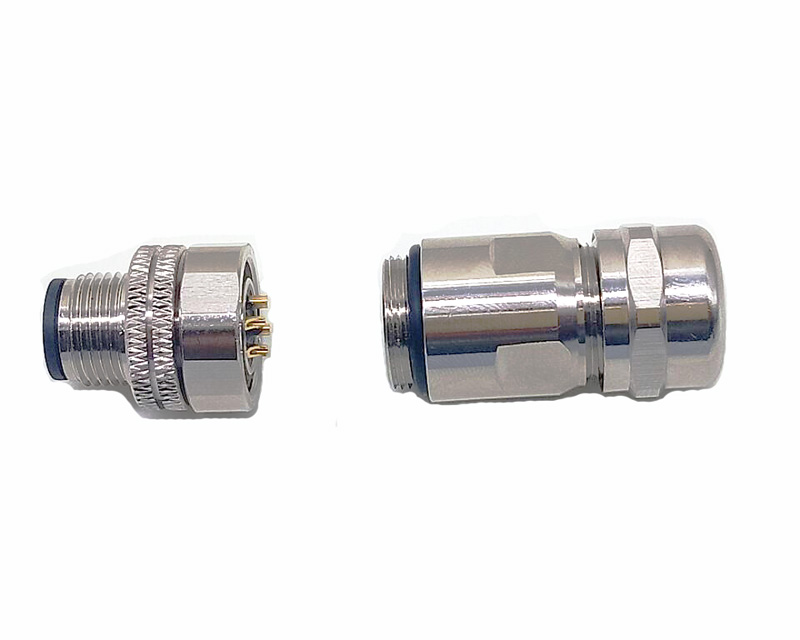

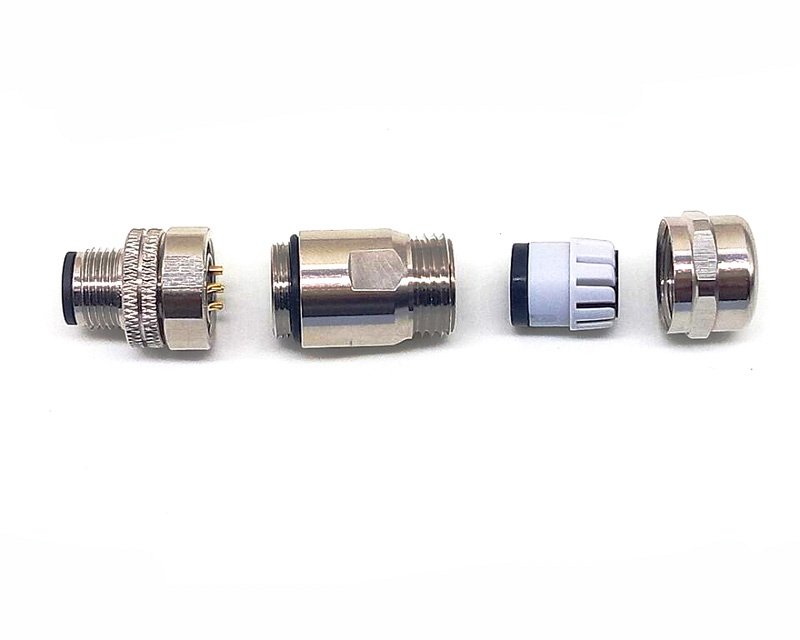

This is M12 D-Coded male connector with assembly metal shell. It is widely used in field wireable and installable industry Ethernet connection. There are two types of cable outlet such as cable OD 4-6mm PG7 and 6-8mm PG9.
This is M12 D-Coded male connector with assembly metal shell. It is widely used in field wireable and installable industry Ethernet connection. There are two types of cable outlet such as cable OD 4-6mm PG7 and 6-8mm PG9.
General Description:
Connector Series: M12 Connector
Gender: Male.
Coding: D-Coded.
Wire Connection Type: Soldering
Contacts: 4 Position.
Protection Rating: IP67.
Product Description
Related Products
Physical and Mechanical Character
Product Type: M12 D-Coded Male Connector
Waterproof Rating: IP67/IP68
Installation Method: Field Wireable and Installable
Anti-oil anti-corrosion
Brass with gold plating pin(solder-cup)
Brass with nickel plating
Insulation plastic:PA66+GF
Cable Jacket Material: PVC
Electrical character:
1. Rated voltage:250V AC/DC
2. Insulation resistance:≥100MΩ
3. Nominal current:4A
4. Contact resistance:≤10MΩ
5.Standard:TIA568/IEC 61076-2-109
6.Operating temperature:-25℃~+85 ℃
M12 D-Coding Male Connector, Assembly Type Metal Shell, soldering Terminal
M12 D-Code Connector, Field Installable, 4 Position
M12 D-Style Circular Connector, Field Assembly 4 Pin soldering Terminal
M12 4P D Coded Male Connector, Assembly Metal Cover, PG7 and PG9 Available
